Plate Settlers Water Treatment

Key points of inclined pipe process design

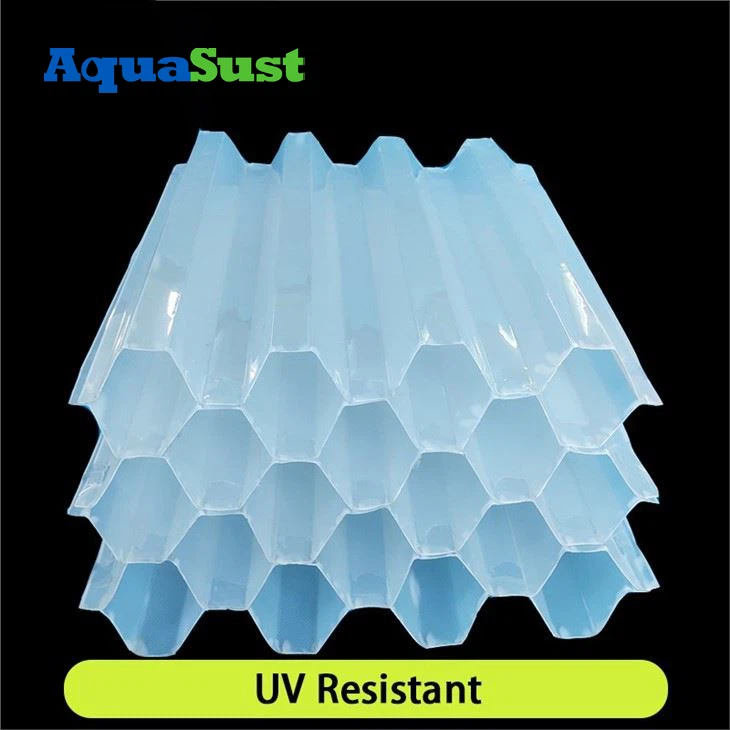

① The go area of inclined pipe is normally honeycomb hexagonal, and its internal diameter is commonly 25 ~ 35mm.

② The diameter of inclined pipe is 30 ~ 40mm, the size of inclined pipe is normally about 1000mm, and the horizontal inclination perspective isθ60 ° is frequently used.

③ The top of clear water location in the top phase of inclined pipe ought to now not be much less than 1.0 m. The greater clear water vicinity is conducive to the uniformity of water outlet and the discount of daylight have an impact on and algae propagation.

④ The top of water distribution location at the decrease phase of inclined pipe ought to now not be much less than 1.5m.In order to distribute water evenly, perforated wall or grid have to be set at the inlet of sedimentation tank to acquire high-efficiency plate settlers water treatment.

⑤ The top of the sludge region have to be decided in accordance to the quantity of sediment, the attention diploma of sediment and the way of sludge discharge.The sludge discharge tools is the equal as the horizontal glide sedimentation tank, and the perforated sludge discharge or mechanical sludge discharge can be used.

⑥ The plate settlers water therapy have to make the water out of the pool uniform, and perforated pipes or perforated water series tanks can be used for water collection.

⑦ The liquid degree load of inclined tube sedimentation sector ought to be decided in accordance to the operation journey below comparable conditions, which can be 5.0 ~ 9.0 M²/(m²·h)
