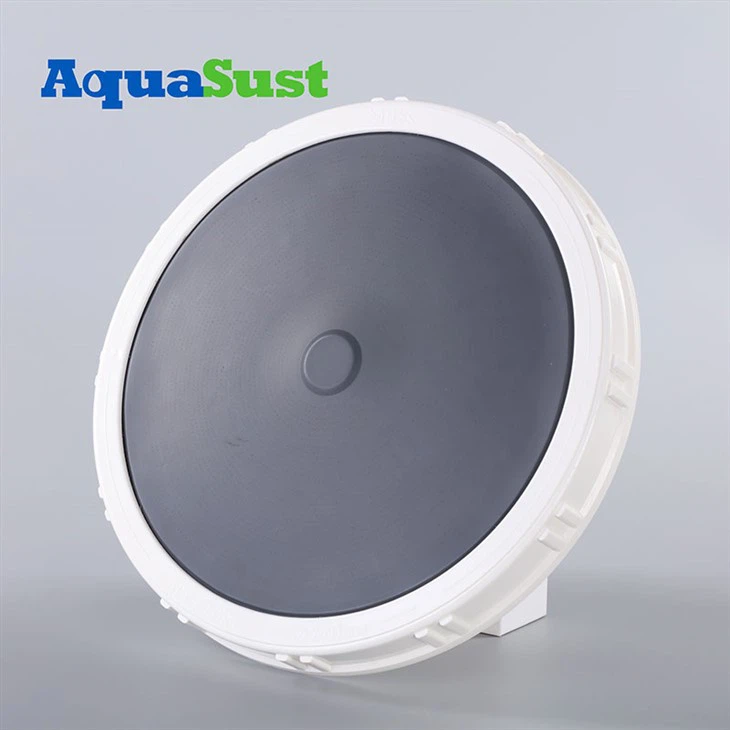

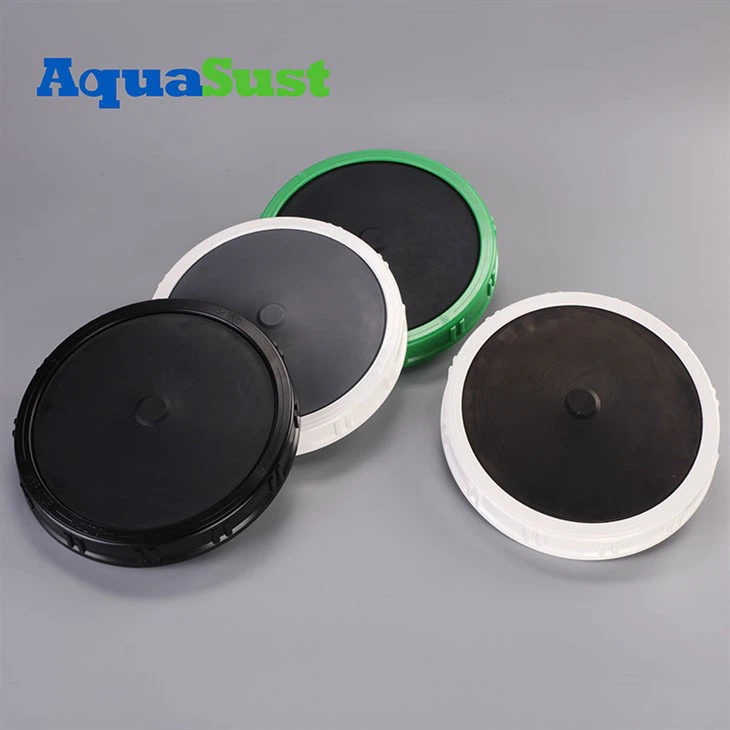

High Quality Smart Disc Diffuser With Membranes Protect
- Aquasust Strengthen Smart Disc Diffuser sevice for 5- 10 years
- Precision mechanical drilling tooling mold make the Holes of the membrane uniform
Aquasust Smart Diffuser Solutions
Customized design, pursuit of perfection and innovation
Free Cost-Estimates & Designs:
Aquasust offer free cost estimates and evaluations without obligations to make sure that Aquasust Disc diffuser is a perfect fit for every project.
High Quality Aeration Diffuser Products:
Aquasust aeration systems are well known in the industry for their outstanding performance and quality, with a wide range of models available to meet your specific treatment requirements in a flexible manner.
Quality and Innovation:
Aquasust has a tradition of providing superior quality products and lasting innovation. Everything from our diaphragms to our fittings and air distribution lines are subjected to rigorous quality testing. The R&D and design team will continue to innovate and develop more advanced aeration products according to market demand.
Installation and Commissioning：
A professional project management team ensures that each project is completed on time and with the highest quality. The installation and commissioning of each project is guided by an experienced engineer.
After-sales support：
Aquasust's sales and technical teams are at your disposal when you need them and will continue to help you even after the project is completed.
Aquasust High Qulity Diffuser membrane
1.Special Manufacturing methods of EPDM membrane ,Aquasust EPDM membrane was manufctured by EPDM mold with modern equiment utilizing individual thermocouples and vacuum technology ensures a repeated very high quality membrane.
2. Special EPDM Formula which make lower plasticizer content, and Aquasust Diffuser membrane was made by EPDM Mold with a modern equiment utilizing individual thermocouples and vacuum technology ensures a repeated very high quality membrane.
This kinds technology very few used in China, just only used in a few USA high quality diffuser supplier. We are the first one company who use this technology for our EPDM membrane.
3. Precision mechanical drilling tooling mold make the Holes of the membrane uniform
4. High quality Ram material EPDM which import from Lanxess Germany
Aquasust Smart Disc Diffuser Structure
1.Multiple integral check valves keepyour aeration piping system clean.( Membrane check Valve A and Structure check valve B together)
2.High quality Aquasust EPDM Membrane can guranatee longer service life.
3.Durable O-ring rubber seal, high quality accessories, durable.
4.Formula ABS Disc Support which made by ABS with strength formula and UV protector. when install or rechange water, there are some sunlight throught water make the ABS plastic shorter life, Aquasust Formula ABS can be volid such problem, and orange color is more durable that that of white.
Aquasust Disc support can be used for more than 15 years. If need, if the membrane is not good enough, we can just change the membrane is OK.
5.Eight Ribs make the ABS Support Sthrength enough for long service life of 5 to 10 years.
Aquasust Smart Disc Diffuser Datameter
|
Item number |
DD215 | DD260 | DD300 |
|
Bubble type |
Fine Bubble | Fine Bubble | Fine Bubble |
|
Membrane Material |
Formula EPDM From Laxess Germany | ||
|
Carrier Plate |
Formula Strengthen ABS |
||
|
Connector |
3/4" NPT Male thread |
||
|
Bubble size(mm) |
1.0-2.0 | 1.0-2.0 |
1.0-2.0 |
|
Design Flow(m3/h) |
1.5-2.5 |
1.0-2.0 |
5.0-6.0 |
|
Flow Range(m3/h) |
1.0-5 |
3.0-4.0 |
2-12 |
|
Standard Oxygen Transfer Efficiency(6m submerged) |
≥38% | ≥38% |
≥38% |
|
Service Life(years) |
0.2-0.64 |
0.25-1.0 |
0.4-1.5 |
Aquasust Smart Disc Diffuser install Detailing
1.Air riser for inlet
2.Level supervisor to make the system stable
3.Aquasust pipe tee can connect lines.
4.Branch pipe for system
5.Aeration disc diffusers
6.Pipe support (ABS)
7.Pipe support (SUS304)
8.Drain pipe for the tank
Aerator Tank install design
1.Aquasust can offer the design of the disc diffusers installation if need and the
quantity of disc diffusers that your projects need
2.Aquasust also offer cost estimates and evaluations
3.Aquasust can offer all the parts of the diffuser system
Product Installation Guide
This section provides detailed installation instructions for four types of pipe accessories: Grommets, Aquasust Saddles, Connect Saddles, and Quick Connect Saddles. Each method is tailored to specific pipe materials and sizes (DN40–DN100), ensuring secure, leak-free connections. Follow the steps carefully for optimal performance and durability.
No.1 Install Grommets Detailing
1.Grommets are fixed by Glue.
2.IF ABS Grommets match ABS pipes, must use ABS glue, if PVC Grommets match PVC pipes, must use PVC glue.
3.After Gules, the pipe and Grommets need stay for dry about 4 hours.
4.Make holes about 6mm holes on the pipe with through the Grommets after the Grommets fixed.
5.Multiple sizes are available on pipe wthickness for the Saddles.
No.2 Aquasust Install Saddles
1.Installation method: In actual operation, both sides are used for adjustment, no need to close, just fixed
2.Must be screw fixed first, Than make pipe holes
3.The Nails size is :M6*30
4.Multiple sizes are available on pipe wthickness for the Saddles.
It can be used for the pipe size:
DN40,DN50,DN65,DN80 DN100
No.3 Install Conect SADDLES Detailing
1.Connect Saddles Mounth with Nails on both size, also Rubble seal ring in the start of the pipe make the system no leak at all.
2.Saddles are made by Formula Strengthen ABS, and smart design and Thicker wall thickness of the mounth, make it fixed well.
3.Install into 6 mm holes.
4.We just offer the plastic Connect Saddles without Nails, If you need nailes together, please inform us.
No.4 Quick Connect SADDLES
1.Qucik Connect Saddles Mount on both sides
2.Double Rubble seal ring in the start of the pipe make the
system no leak at all.
3.Quick Connect Saddles are made by Formula Strengthen ABS, and install into25.4mm holes.
4.This way install no need nails, no need glue, it can be used any kinds of Pipes.
5.Multiple sizes are available on pipe wthickness for the Saddles.
It can be used for the pipe size:
DN40,DN50,DN65,DN80 DN100
Aquasust ABS Support Stand
1.Supports Stands are made by Streng then ABS Plastic In Aquasust
Aeration Piping systems, Support stands fullfill the dural role of Anchoring pipes to the floor and Controlling thermal Expansion and Contraction.
2.ABS Support stands are primarily used with Disc diffsuers and plastic pipes, where a low capital costs is the primary abjective.
3.Parts Needed Quantity rate:
Disc Diffuser: connection: Support Stands= 1: 1: 0.6
4.Multiple sizes are available on pipe wthickness for the Support Stand.
It can be used for the pipe size:DN40, DN50,DN65,DN80 DN100
Aquasust Smaet Disc Diffuser Packaging
Aquasust Package Guarantee you get each smart disc membrane at perfect perforamce
18 cartons per Pallets (total 540 pcs /Pallet)
