Good quality Smart Tube Diffuser made in China
1.Maintenance-free design, 8 years service life
2.EPDM/SILICONE membrane with excellent performance

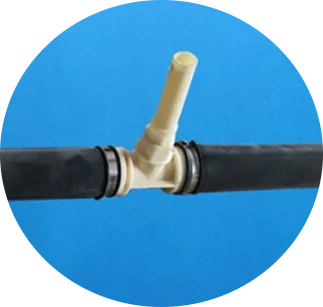

Smart Tube Diffuser Installation
1. Good quality aeration tube diffuser made in China can be used in a variety of water aeration, and oxygenation applications. Our Good quality aeration tube diffuser
made in China are designed with a 3/4 FPT connection, but come with an MPT nipple for easy conversion, if desired.
2.This nipple also allows users to install our Tube Diffusers using the same Universal Diffuser Mount mentioned above.
Simply tap a 1 hole in your piping system and screw in the tube with the attached MPT nipple.
3.Again once all of the diffusers are installed,fill the area just above the diffuser line with water and check for any faulty installations and/or Leaks.
Why choose Smart Tube Diffuser:
1.Successful long-term use in innumerable installations worldwide
2.Simple installation and low level of investment
3.High oxygen transfer –confirmed in numerous tests at accredited institutes
4.Optimum adjustment to tank form and diffuser depth
5.Best possible design –considering diffuser density,airflow and oxygen transfer– due to many years of experience
Smart Tube Diffuser Parameter
|
Item number |
TD63 |
TD93 |
TD113 |
|
Bubble type |
Fine Bubble |
Fine Bubble |
Fine Bubble |
|
Diameter |
63mm |
93mm |
113mm |
|
Material |
Special F ormula EPDM with UV Protector import from Germany/Silicon Membrane |
||
|
Tube material :Acry lonitrile-butadiene-styrene with UV Protector (ABS) |
|||
|
Connector |
3/4" NPT Male thread |
||
|
Length(mm) |
500/7500/1000mm |
500/7500/1000mm |
500/7500/1000mm |
|
Service Life(years) |
≥6 |
≥6 |
≥6 |
|
Service Area(m2) |
0.75-2.5 |
1.0-3.0 |
1.5-2.5 |
| Flow range(m3/h) |
2--14 |
5--20 |
6--28 |

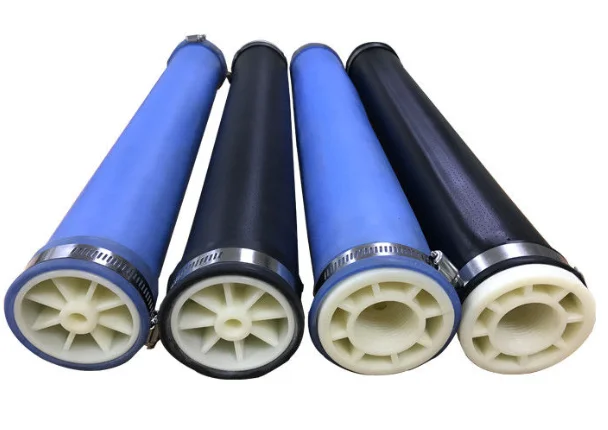

Smart Tube Diffuser Description

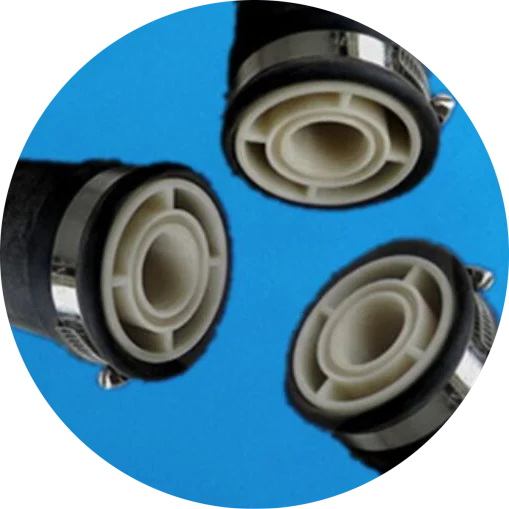

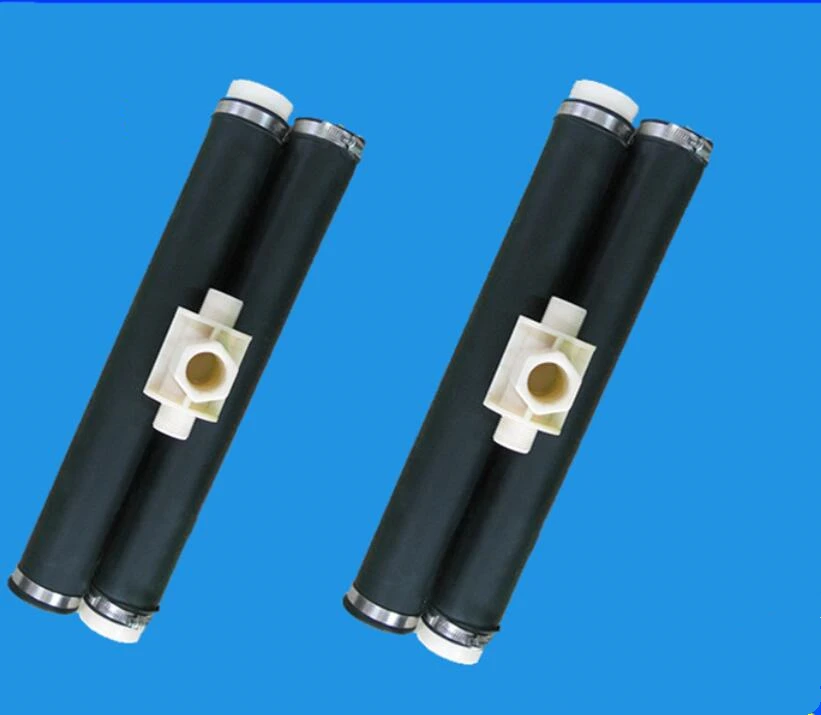

EPDM fine bubble tube diffuser can be connected on one side or in pairs to different rectangular and round tubes (ABS material)with the appropriate adapter.
The membranes are manufactured with premium quality EPDM material and are available with fine or coarse-bubble perforation.
The support tubes(ABS material)can be reused when membranes are replaced.
Diffuser Aeration Features
1. high oxygen transfer efficiency.
2. High resistance to clogging.
3. High resistance to corrosion.
4. Wide air flow range.
5. Low pressure loss. 6. Low energy cost.
7. Easy installation. 8. Uniform fine bubble.
9. Back flow prevention.
10. Self cleaning operation.
11. Intermittent operation capability.
12. Slide-off prevention designed.

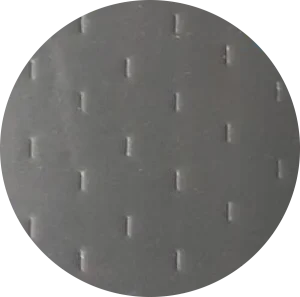

1.Even perforation The arrangement of the air outlet openings ensures fine-bubble aeration with extremely low-pressure loss and therefore a highly effective usage of oxygen across the entire aeration area
2.Ease of installation,2 minutes for one diffuser, The tube diffuser will be screwed from both sides on the stainless-steel connector till the connection is tight.
3.The diffusers are designed for trouble-free and energy saving intermittent as well as for continuous operation.

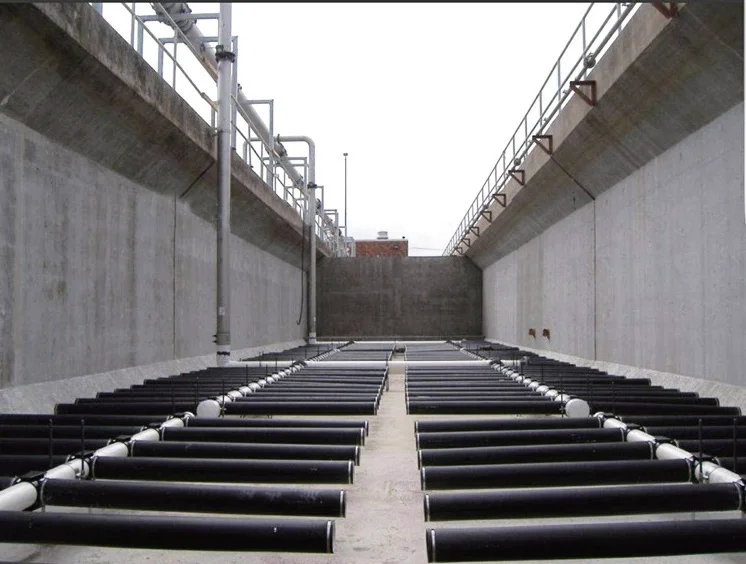

Smart Tube Diffuser Aeration Application
1. Municipal wastewater treatment.
2. Industrial wastewater treatment.
3. Clean water treatment.
4. Sludge stabilization.
5. Wastewater ozone diffusion.
6. Aeration of streams and lakes.
Shipping Packaging
