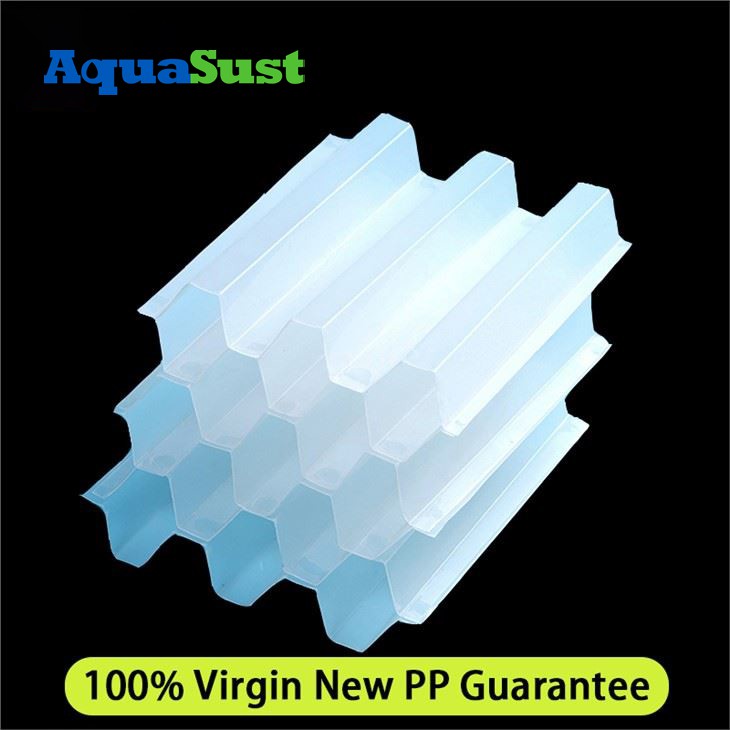

Product Parameters Name：TL50PP Diameter：50 mm Color : Blue or white Material：100% New PP with UV protector Piece Per CBM：32 piece Resistance : UV, Chloride, Acid, Oil Certificate: FDA standard with SGS certificate, Fulfills all drinking water requirements like eg NSF, KTW, ACS, DWI 31 Gravity: 0.92g/cm3 Slope: 60° Surface area: more than 95 m2/m3 Block size: 1mX 1mX height(0.6m to 1.2m) Continue operation temperature: 70 degree Max operation temperature: 80 degree( short time) Sedimemtation Area: 9m2/m3 Assembled : by plastic welded gun on site Application: Carifier or Sedimentation for drink water, municipal and industrial waster water treatment Service Life: 5 to 10 years Very robust and longlasting + simplest support system |
|
Case Studies ① Example of treatment for Papermaking wastewater: Address:No.3 Longwan Road, Development Zone, Fuding, Ningde Capacity: 10000m3/day Treatment process: bio-treatment -Chemicals(pac+decolor+pam) Dosage: PAC 150mg/L decolor 150mg/l, PAM 1mg/L Time: June 10th, 2020 |
 |
The effectiveness is shown in the following table:
|
Index |
COD(mg/L) |
Chromaticity(Pt-Co) |
PH |
SS(mg/L) |
|
Before treatment |
550 |
800 |
8.0 |
200 |
|
After Treatment |
230 |
30 |
7.6 |
40 |
|
Removal rate |
58% |
96% |
--- |
80% |
|
Case Studies ② Example of treatment for Printing and dyeing wastewater: Address:No. 286 Taixing Road, Economic and Technological Development Zone, Creek Town Factory: one of jiangsu dyeing factory (active dyes) Capacity: 5000m3/day Treatment process: bio-treatment- Chemicals( pac+decolor+pam) Dosage: PAC 150mg/L, decolor 200mg/L, PAM1.5mg/L Time: April 15, 2019 |
 |
The effectiveness is shown in the following table:
|
Index |
COD(mg/L) |
Chromaticity(Pt-Co) |
PH |
SS(mg/L) |
|
Before treatment |
350 |
1500 |
7.8 |
80 |
|
After Treatment |
120 |
35 |
7.5 |
30 |
|
Removal rate |
66% |
98% |
--- |
63% |
