Water Treatment Tube Settlers

Main points of inclined tube process design

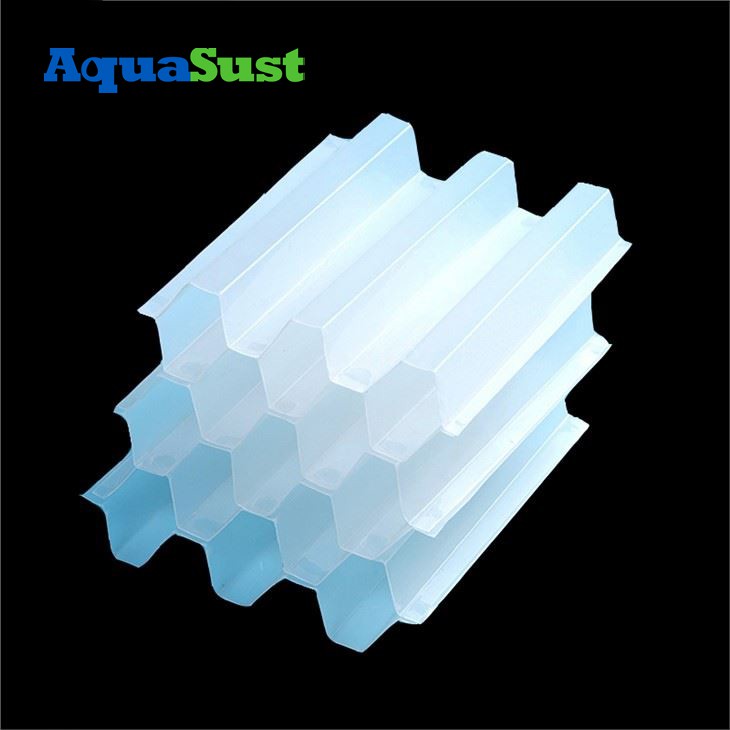

①The cross-section of the inclined tube is commonly honeycomb hexagonal, and the internal diameter is usually 25-35mm.

②The diameter of the inclined tube is 30-40mm, the size of the inclined tube is normally about 1000mm, and the horizontal inclination attitude is θ60°.

③The top of the clear water location in the higher section of the inclined pipe have to now not be much less than 1.0m. A greater location of clear water is conducive to uniform water output, lowering the have an effect on of daylight and algal blooms.

④ The water distribution area's peak at the inclined pipe's decrease phase must no longer be much less than 1.5m. In order to make the water distribution uniform, a perforated wall or grille have to be established at the entrance of the sedimentation tank of the plate settlers' water remedy to acquire the effluent of the high-efficiency plate settler.

⑤ The top of the sludge location ought to be decided in accordance to the quantity of sediment, the awareness of sediment, and the technique of sludge discharge. The sludge discharge gear is the identical as the horizontal go with the flow sedimentation tank. It adopts perforated sludge discharge or mechanical sludge discharge, and sludge discharge can be used.

⑥ The plate settlers' water remedy need to make the water out of the effluent pool uniform, and perforated pipes or perforated water series tanks can be used for water collection.
