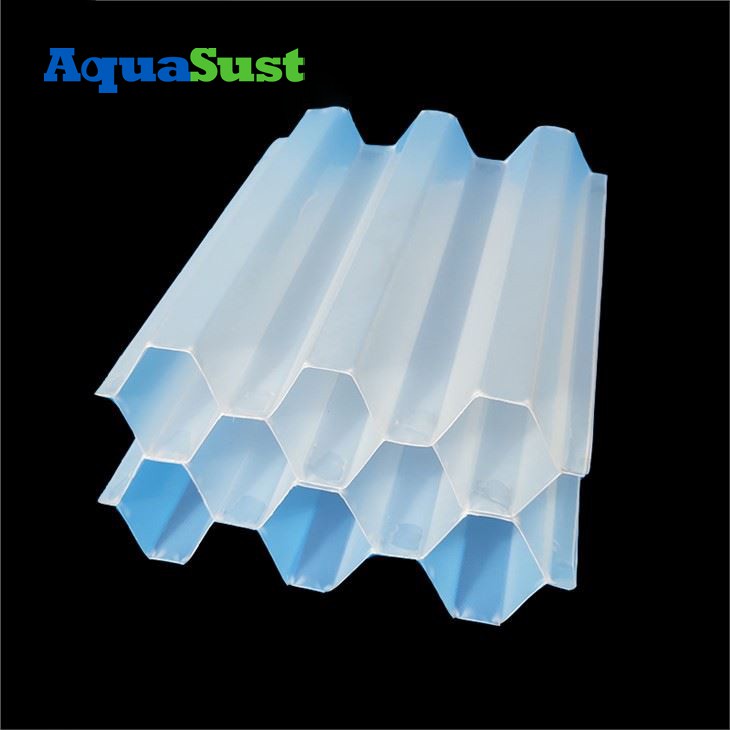

Tube Settler Media Size
AquaSust Tube Settler Description：
Tube settlers are designed using PVC, PP or FRP. The design may be the square type or round type tubing. The materials make them lightweight easy to retrofit.
While extruded tube settlers and thermoformed tube settlers generally perform in the same manner, they are designed and manufactured quite differently. The extrusion process takes a raw material, in this case plastic, and pushes it through a die to make a specific shape. (Think of making spaghetti with Play-Doh when you were a kid). The shape for most extruded tube settlers is generally a "V" with a tongue and groove on either side. After the shapes are extruded, they are assembled side by side as well as front to back, using the tongue and groove to connect them together, resulting in a chevron pattern. This type of design provides tubular channels much like thermoformed tube settler modules.
Tube settlers are gravity settlers wherein the settler is provided with tubes to increase the surface area of separation of solids from the liquid. The tubes are placed in an inclined fashion.
Product advantages:
As the units are provided with steep hoppers, there is no need to provide any sludge scrapping/ collection mechanism. Sludge blow off is affected by the static head of water in the tube settler. Sludge is withdrawn from the bottom of the Tube settlers as underflow and sent to sludge sump for the further de-watering process. The clarified water is obtained as an overflow from the tube settler is sent for further treatment in Sand Filters.
AquaSust plastic provides both tube settler and plate settlers so depending on the customer situation and requirements the matching product can be provided.
The design of the tube settler media size involves the use of multiple tubular channels inclined at a 60-degree angle and adjacent to each other. This helps in increasing the settling area effectively. Tube settler design reduces the depth significantly compared to the conventional clarifier. This helps in reduction of settling time.
Versatile & fast installation
The tube settler media system can adapt to virtually any setting with a quick-and-easy installation process designed for various clarifier configurations.
Tube settler media sizes are designed to ensure higher flow rates and efficient solids removal while occupying minimal space in the settling tank.
information:
AquaSust Tube Settler Installation:
