Product Description

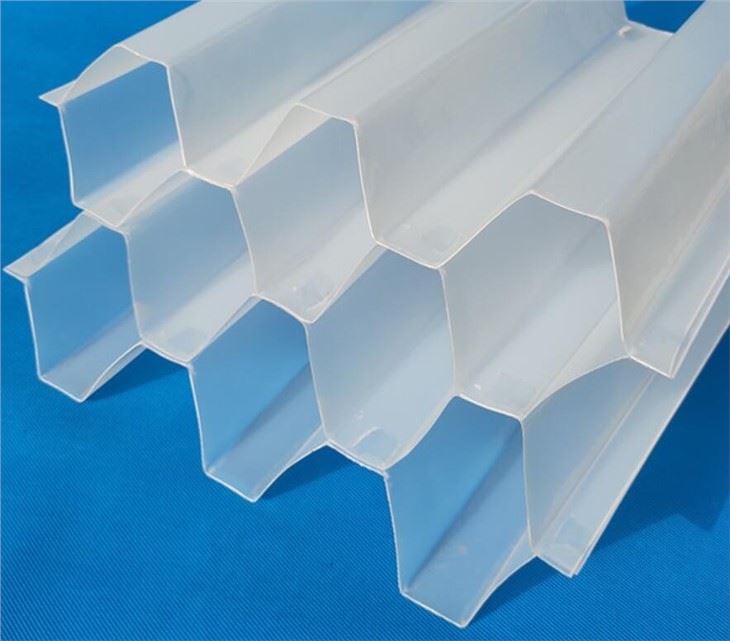

Tube Settler Can be Made into PP and PVC Material
PP material Tube Settler is food grade, it can be blue and white color.
PVC material can be blue and black color.
Both of PP and PVC material can add UV protection.
Tube Settlers with different sizes:25mm,35mm,50mm,80mm.
|
Iterm
|
A
|
B
|
C
|
D
(Theoretically) |
D (Actually)
|
|
Dia25mm
|
30mm
|
15mm
|
15mm
|
12mm
|
<15mm
|
|
Dia35mm
|
40 mm
|
20mm
|
20mm
|
17.5mm
|
<20mm
|
|
Dia50mm
|
60mm
|
28mm
|
28mm
|
25mm
|
<30mm
|
|
Dia80mm
|
80mm
|
35mm
|
35mm
|
40mm
|
<45mm
|
Structural features
The structural feature of the counter-flow inclined tube sedimentation tank is that many parallel inclined tubes with smaller diameters or parallel inclined plates with smaller spacing are installed in the tank. The water flow enters from the bottom of the inclined pipe, and while it flows out from the upper part, the sedimented sludge slides down the lower part of the inclined pipe wall, and the water flow and the sludge flow move in different directions. To a certain extent hinder the separation of mud and water.
Application Field
1.Waste Water Treatment
2.Re-circulation Systems
3.Drinking Water Treatment
6.Industrial Water Treatment
