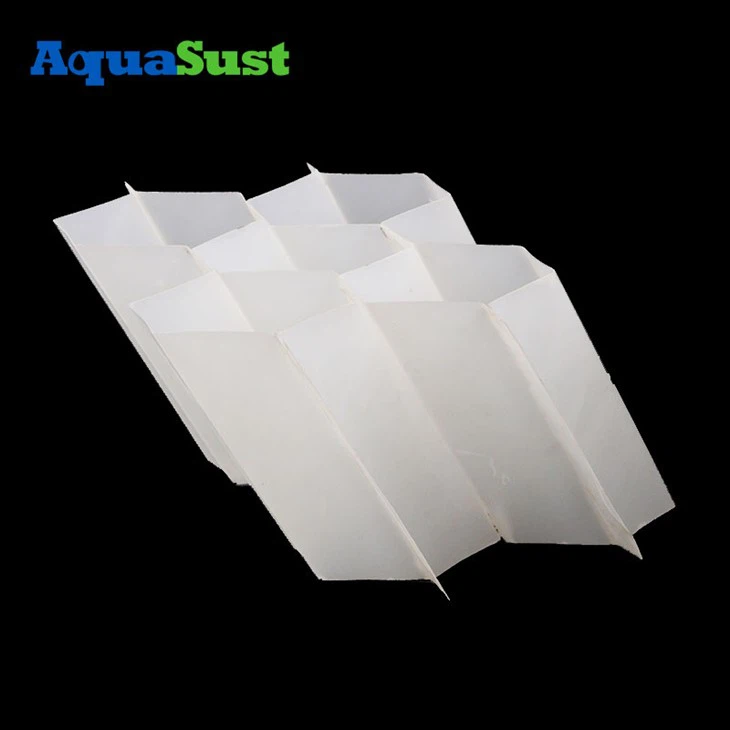

- Tube Settler Can be Made into PP and PVC Material.
- PP material Tube Settler is food grade, it can be blue and white color.
- PVC material can be blue and black color.
- Both of PP and PVC material can add UV protection.




|
Iterm
|
A
|
B
|
C
|
D
(Theoretically) |
D (Actually)
|
|
Dia25mm
|
30mm
|
15mm
|
15mm
|
12mm
|
<15mm
|
|
Dia35mm
|
40 mm
|
20mm
|
20mm
|
17.5mm
|
<20mm
|
|
Dia50mm
|
60mm
|
28mm
|
28mm
|
25mm
|
<30mm
|
|
Dia80mm
|
80mm
|
35mm
|
35mm
|
40mm
|
<45mm
|

Advantages of tube settlers (lamella clarifiers):
Process efficiency From multiplication of the sedimentation area, chevron equidistant channel shape and adaptation of the settling area spacing and slope Flexible dimensions It can be adapted to all kinds of shapes, inclinations, round settlers and allows cut outs.
Easy handling Simple on site assembly method grants low cost, safe delivery to any place in the world. Sophisticated support system With stainless steel and specially shaped glass fibre reinforced plastic beams minimizing turbulence and sludge deposit.
Strong and high quality material We provides high stability of the modules for easy maintenance – PP material approved for high standards of potable water applications Application Field It is mainly used for sand removal. It is widely used in water supply and drainage engineering in recent ten years and has become a water treatment device.
It has the advantages of wide application range, high treatment effect and small floor area. It is suitable for water inlet Desanding, general industrial and domestic water supply sedimentation, sewage sedimentation, oil separation and tail tensioning concentration.
It is not only suitable for new projects, but also suitable for the reconstruction of existing old pools, which can achieve good economic benefits.1.Waste Water Treatment


2.Re-circulation Systems
