Product Description

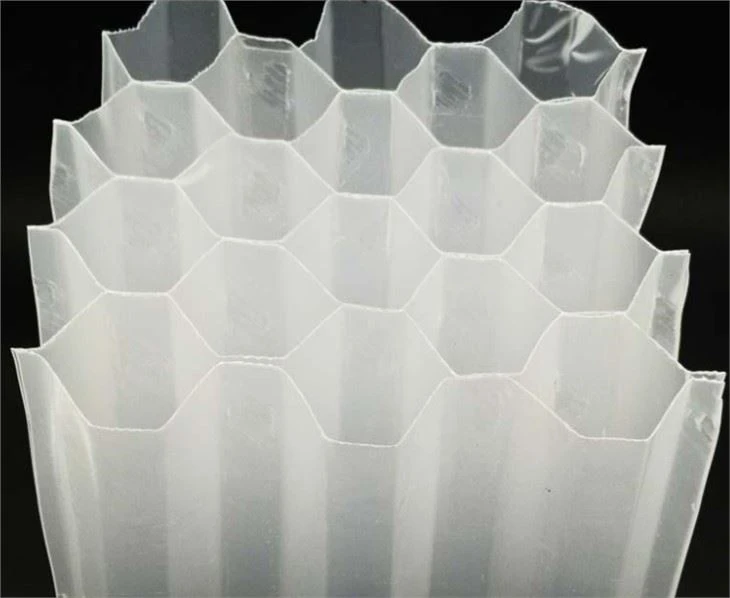

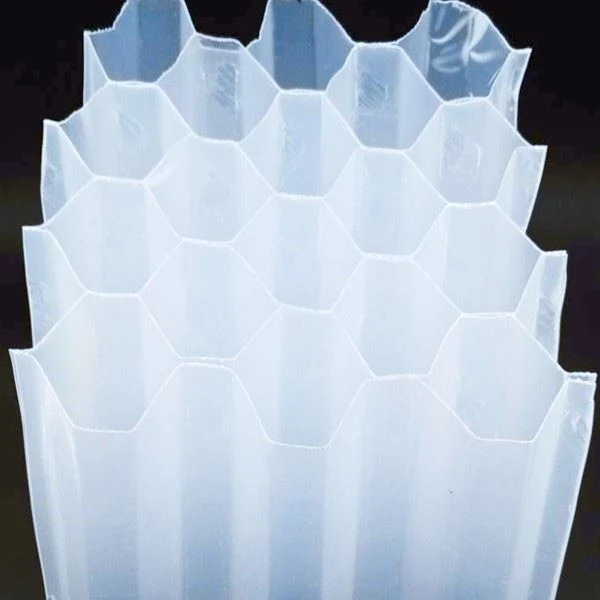

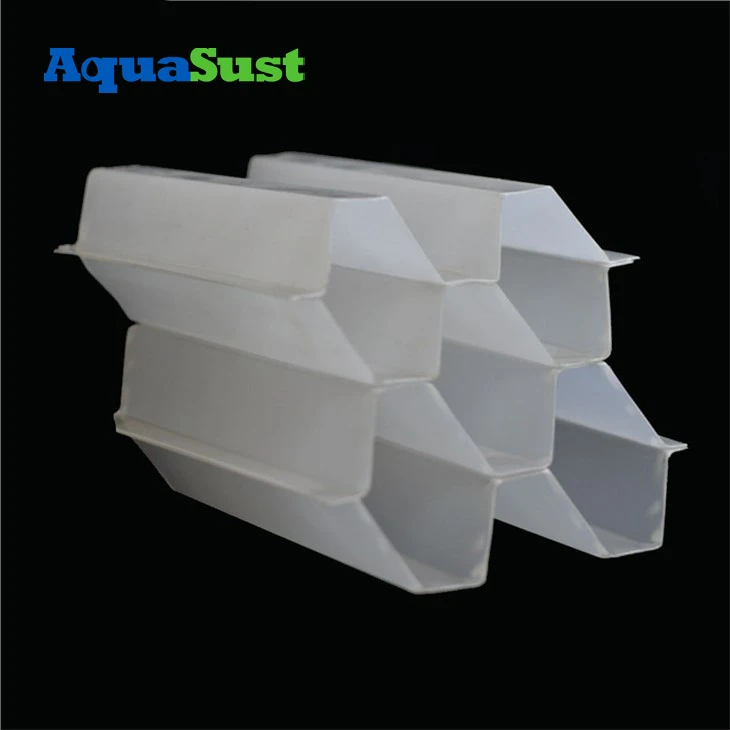

AquaSust plastic lamella tube settler
Features:
1,Large watted perimeter, small hydraulic radius.
2,Good laminar flow, particles falling free from flocculent flow interference.
3,As long as inclined tube is 1meter, effective loadis designed by 3-5 tons/m 2 .VO in 2.5-3.0 mm/sec range and best water quality.
4,Adopting honeycomb inclined pipe in water inlet with tube 2.0 to 3.0 meters ensure safe operation processing in high turbidity of 50-100 kg/m3 clay sand content.
5,Processing power of inclined pipe sedimentation tank is horizontal-flow settling tank 3-5 times, accelerating water clarification and pulse water clarification of 2-3 times.
Tube Settler Can be Made into PP and PVC Material
PP material Tube Settler is food grade, it can be blue and white color.
PVC material can be blue and black color.
Both of PP and PVC material can add UV protection.
Tube Settlers with different sizes:25mm,35mm,50mm,80mm.
|
Iterm
|
A
|
B
|
C
|
D
(Theoretically) |
D (Actually)
|
|
Dia25mm
|
30mm
|
15mm
|
15mm
|
12mm
|
<15mm
|
|
Dia35mm
|
40 mm
|
20mm
|
20mm
|
17.5mm
|
<20mm
|
|
Dia50mm
|
60mm
|
28mm
|
28mm
|
25mm
|
<30mm
|
|
Dia80mm
|
80mm
|
35mm
|
35mm
|
40mm
|
<45mm
|
|
Size (mm)
|
Thickness(mm)
|
Quantity (pcs/m2)
|
Weight (kgs/m2)
|
Specific Surface Area (m2/m3)
|
|
φ25
|
0.40
|
62
|
30
|
139
|
|
0.45
|
62
|
35
|
139
|
|
|
φ35
|
0.40
|
42
|
22
|
109
|
|
0.45
|
42
|
25
|
109
|
|
|
φ50
|
0.50
|
42
|
28
|
109
|
|
0.40
|
30
|
16.5-17
|
87
|
|
|
0.45
|
30
|
175-18
|
87
|
|
|
0.50
|
30
|
185-19
|
87
|
|
|
0.60
|
30
|
22
|
37
|
|
|
φ80
|
0.70
|
20
|
19.5
|
50
|
|
0.80
|
20
|
22
|
50
|
Application Field
1.Waste Water Treatment
2.Re-circulation Systems
3.Drinking Water Treatment
6.Industrial Water Treatment
