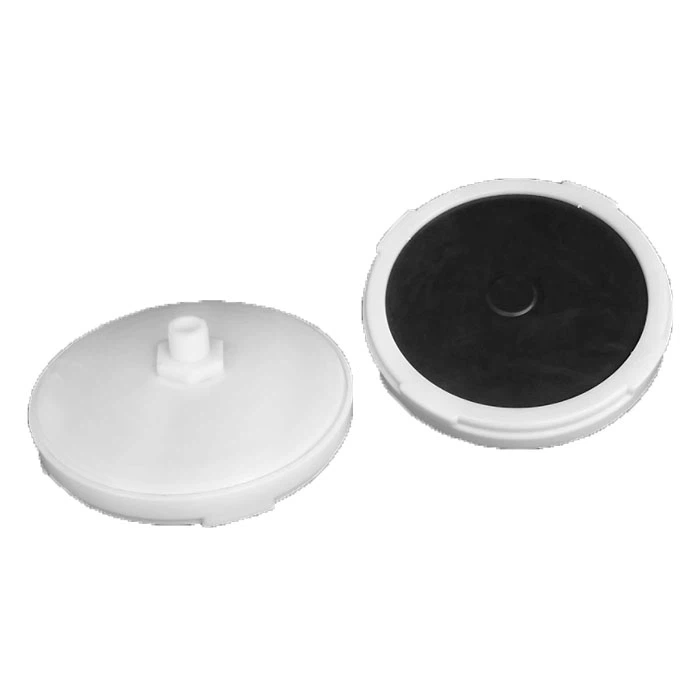

Product Description
Whole Aeration device blanketed the aerator(bubble diffuser) fuel distribution pipes, tees,crosses, elbows, regulators, connectors, cleansing gadgets and different components. Usually fuel distribution pipelines is the traditional round arrangement, diffuser extent is in accordance to the air capability and ponds size. The diffuser and gasoline distribution pipelines the use of G3 / four threaded connection, the base is internal thread (fixed in the pipeline), diffuser is externally threaded.
Disc Diffuser Aeration Features
1.Simple structure, ease of installation
2.Tight sealing except air leakage
3.Maintenance-free design, lengthy carrier life
4.Corrosion resistance and anti-clogging
5.High oxygen switch effectivity
Disc Diffuser Aeration Specification
|
Item number |
DD170 |
DD215 |
DD260 |
DD350 |
|
Bubble type |
Coarse Bubble |
Fine Bubble |
Fine Bubble |
Fine Bubble |
|
Diameter |
6 Inch |
8 Inch |
9Inch |
12Inch |
|
Material |
EPDM/Silicon Membrane |
EPDM/Silicon Membrane |
EPDM/Silicon Membrane |
EPDM/Silicon Membrane |
|
ABS/PP Carrrier Plate |
ABS/PP Carrrier Plate |
ABS/PP Carrrier Plate |
ABS/PP Carrrier Plate |
|
|
Connector |
3/4" NPT Male thread |
3/4" NPT Male thread |
3/4" NPT Male thread |
3/4" NPT Male thread |
|
Bubble size(mm) |
4-5 |
1-2 |
1-2 |
1-2 |
|
Design Flow(m3/h) |
1-5 |
1.5-2.5 |
3-4 |
5-6 |
|
Flow Range(m3/h) |
6-9 |
1-6 |
1-8 |
1-12 |
|
Standard Oxygen Transfer Efficiency( 6m submerged) |
≥36% |
≥38% |
≥38% |
≥38% |
|
Service Area(m2) |
0.5-0.8 |
0.2-0.64 |
0.25-1.0 |
0.4-1.5 |
|
Service Life(years) |
≥6 |
≥6 |
≥6 |
≥6 |
Disc Diffuser Aeration Application
1. Aeration for SBR response basin, contact oxidation pond, and activated sludge aeration basin in sewage disposal plant;
2. Aeration for denitrification / dephosphorization cardio processes;
3. Aeration for excreta and animal wastewater cure plant;
4. Aeration of deep aeration basin;
5. Aeration for excessive attention wastewater aeration basin, and aeration for regulating pond of wastewater therapy plant;
6. Aeration of dew pond and different applications.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Company Profile
Disc Diffuser Factory
workshhop
production Lines
Disc Diffuser package
FAQ
1.Q:What is your MOQ ? A: Two cartons for minimum order quantity
2. Q:What is your production time ? A: The production time is two to four weeks
3. Q:What is your package ?A:We packed it by carton boxes.
4.Q:What is your trade way ?A:Usual we trade with FOB / CIF term.
5. Q:What is your payment term ? A:We can accept T/T, L/C at sight, Credit Card, Alipay and so on.
6: Do you provide sample?A: We can offer free sample for test, and customer needs to pay the freight charge.
