SMART SCREW PRESS
MUL TI-DISC SCREW PRESS
SINCE 2013
STANDARD CONFIGURATION
Complete models/One machine for multiple purposes/Support customization

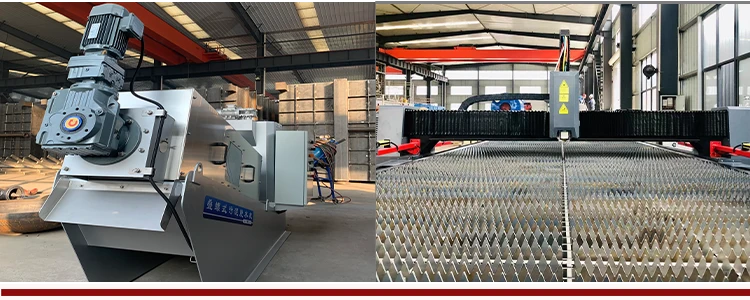

PRODUCT DETAILS
Meticulous only for better
Purely decorative copy, no other meaning, purely decorative copy, no other meaning, purely decorative copy, no other meaning, purely decorative copy, no other meaning
SCRESS PRESSS 9 MAJOR IMPROVEMENTS
PRODUCT COMPONENT SYSTEM
The stacked-screw sludge dewatering machine is composed of stacked-screw main body, filtering device, liquid collecting tank, driving device, flocculation tank, supporting frame body, etc.
SCREW PUSH SHAFT
The stacked screw sludge dewaterer is a new type of solid-liquid separation equipment that uses the principle of screw press to realize the extrusion and dewatering of sludge through the strong squeezing pressure generated by the continuous advance of the screw shaft and the small gap between the moving ring and the fixed ring.
OUR PRODUCT ADVANTAGES
Reliable quality, fine workmanship, good effect and long service life
OVERALL STRUCTURE
1: Equipment Data
| Equipment Model | DL-201 | ||
| Sludge treatment capacity | 1.5m3/H | Sludge concentration 10000g/L | |
| Sludge generation | 15~ 20(DS -kg/h) | Total power of equipment | 1.1kw |
| Washing water volume | 40L/h | Management frequency | 5 Minutes/Day |
| Net weight of equipment | 420kg | Operating weight | 650kg |
2: Setting Environment Description
| Equipment Model | DL -201 | ||
| Temperature range | -10°C~ +40C(No icing) | Humidity range | ≤90%RH |
| Height range | Domestic application | Voltage standard | 380V, 50/60HZ |
| Water supply pressure | 0.1-0.2Mpa | Site Requirements | Indoor Best |
3: Specification parameters
| Equipment Model | DL-201 | Number of units | 1 Piece | ||
| Part Name | Specifcation parameters | ||||
| 1 | Total size of equipment | L=2750*W= 850*H= 1450mm | |||
| 2 | Mud outlet height from the ground | 550mm | Dosing amount | 100L/h | |
| 3 | Sludge input port | DN40 | Dosing port | DN20 | |
| 4 | Overflow port | DN65 | Tap water sprinkler port | DN20 | |
| 5 | Emptying port | DN40 | Water outlet | DN80 | |
| 6 | Main body parameters | Size | φ200*1800mm | ||
| Number | 1 Piece | ||||
| Material | Spindle is all stainless steel(SUS304) | ||||
| Number of ring pieces | Dynamic ring: 199 pieces Static ring: 200 pieces | ||||
| 7 | Stacked screw motor | Model | KAF6 (Frequency conversion) | Brands | Aquasust |
| Waterproof grade | IP55/2.28-5.7r/min | ||||
| Power | 0.55kw | ||||
| 8 | Metering tank | L=360*W=270*H=700mm | |||
| 9 | Flocculation mixing tank | Size | L=480*W= 480*H=800mm | ||
| 10 | Mixing motor | Model | RV63 | Brands | Aquasust |
| Waterproof grade | IP55/25r/min | ||||
| Power | 0.55kw | ||||
| 11 | Solenoid Valve | Model | ZDF Solenoid Valve | ||
| Size | DN20 | ||||
| Material | Copper | ||||
| 12 | Operation | Size | W500*H600*D250mm conversion automatic control (main reducer, mixing mixer,solenoid valve, thermal loverload protection, delayed loperation, timer cleaning,etc.) | ||
| 13 | Spraying | UPVC material, time relay automatic cleaning control | |||
During the operation of the equipment, the sludge moves towards the discharge port from the feeding port after entering the filter tube to the screw spindle rotating plate. As the screw pitch between the screw spindle rotating plates decreases gradually, the pressure on the sludge also increases, and the sludge begins to dehydrate under the effect of pressure difference, and the water flows out from the filtering gap between the fixed ring and the movable ring, At the same time, the equipment relies on the self-cleaning function between the fixed plate and the movable plate to clean the filter gap to prevent clogging of the sludge cake. After full dehydration, the sludge cake is discharged from the feed port under the promotion of the spiral shaft. According to the different sludge properties, the company has developed targeted machines, which are more practical in structure and lower in use cost.
