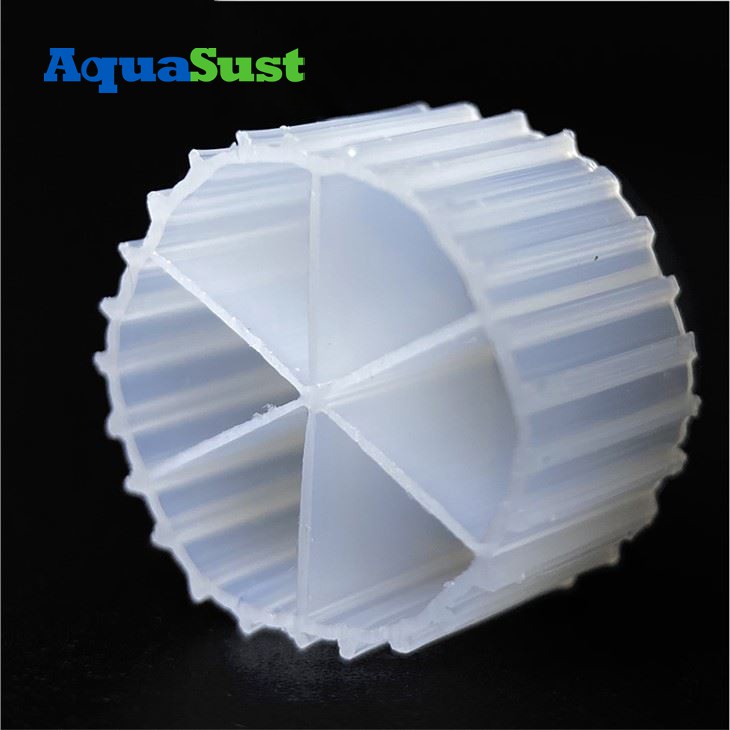

MBBR Media Bio Industry Mbbr Filter Media Carrier

MBBR Media Bio Industry Mbbr Filter Media Carrier
Details:
Type: MBBR06
Size: Φ16*10 mm
Hole: 6 rooms
Surface Area: more than 800m2/m3
Porosity: 85%
Densilty: 0.96-0.98g/cm3
Packing Numbers:>260000pcs/m3
Material: HDPE
Send Inquiry
Download
Description
Technical Parameters

MBBR Media Bio Industry Mbbr Filter Media Carrier

Pro duct describe:

1.geometricconfiguration based on hydrodynamics to strengthen the surface adhesive ability. it is polymer material, having high shock resistance.

2.large specific surface aera, many adhesive biologia.It not only provides the room for heterotrophic bacteria growing but also create the condition for autotrophic bacteria growing. Meanwhile, it is beneficial for the biologia to denitrification and dephosphorization.

3.no need of bracket, easy to fluidify, save energy consumption.The suitable specific weight makes the filler in suspended fluidization state, reducing the eneray consumption and increasing the shock and cutting of bubbles. In the same condition, the aeration amount can be lowered by above 10%.

Originally developed in Europe,

Product Advantage:

  • Minimum Area required

  • Less manual intervention

  • Nominal price

  • Easy to handle and Easy to stabilize

  • Minimum sludge production

  • Lower sludge production

  • High efficiency and performance

  • Bod and Cod reduced to greater extend

Juntal MBBR:

MBBR Media Bio Industry Mbbr Filter Media Carrier is ideal for plant upgrades, retrofits,

or to supplement other wastewater treatment processes in industrial wastewater treatment applications. The flexibility and efficiency of the system also makes it a cost-effective solution to complement other treatment technologies such as Dissolved Air Flotation systems.

Due to the high surface area and surface charge of the media and the robust microbiological communities, MBBRs are ideally suited for high-strength, industrial wastewater applications. In existing wastewater plants, the addition of moving media can expand treatment capacity and improve effluent quality without incurring additional footprint MBBR Media Bio Industry Mbbr Filter Media Carrier



3









8

9-1

MBBR Applications – Industrial

Food and Beverage Industry

Dry foods

Poultry & beef

Milk, cheese & dairy

Potato & vegetable

Soft drinks

Breweries

Wineries

Distilleries

MBBR Applications – Industrial

Food and Beverage Industry

Biodegradable and nontoxic

High concentrations of BOD and TSS

Individual challenges for different

industries

Seasonal load from food processing

and harvesting

Significant BOD loads from dairies,

etc.

Strong wastewater from meat

processing plants with potential for

high concentrations of pesticides,

growth hormones and antibiotics

High sugar contents from soft drink

and dry foods processing industries
