Product Parameter

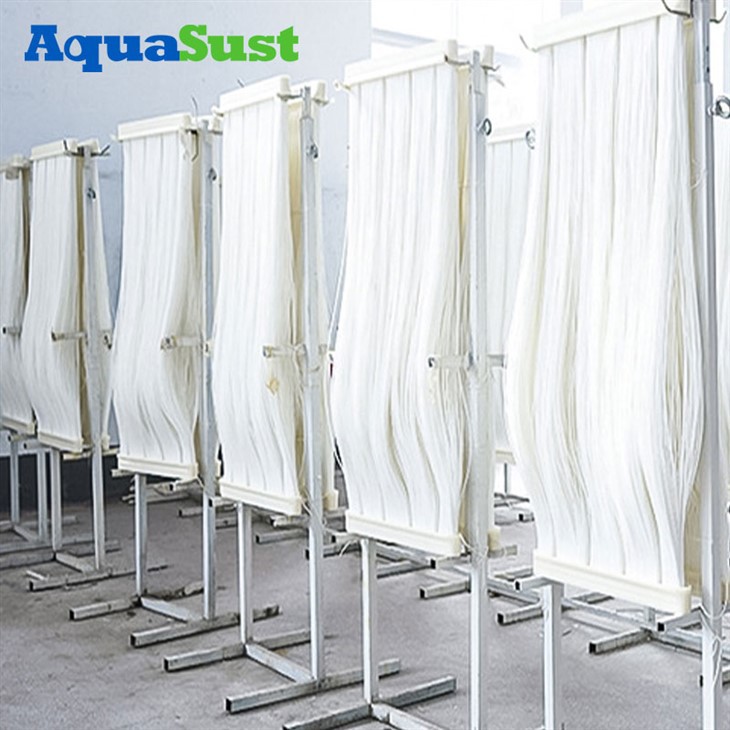

PVDF material MBR membrane sheet technical parameters:
|
Model |
MBR-PVDF-4.5 |
MBR-PVDF-10 |
MBR-PVDF-16 |
|
Module length |
750MM |
980MM |
1500MM |
|
Module width |
530MM |
650MM |
850MM |
|
Outlet diameter |
25MM |
32MM |
40MM |
|
Module membrane area |
4.5M² |
10M² |
16 M² |
|
Interception pore diameter |
0.1micron |
0.1micron |
0.1micron |
|
Turbidity of water output |
＜1NTU |
＜1NTU |
＜1NTU |
|
Tolerance range of temperature |
5-45℃ |
5-45℃ |
5-45℃ |
|
Tolerance range of PH value |
2-12 |
2-12 |
2-12 |
|
Flow of producing water |
1-1.5 M³/D |
2.4-6 M³/D |
3.5-9 M³/D |
|
Max transmembrane pressure(TMP) |
-0.05MPA |
-0.05MPA |
-0.05MPA |
|
Type of water output |
Negative pressure suction |
||
|
Chemical cleaning agents |
Citric acid / sodium hydroxide / sodium hypochlorite |
||
|
1. Technical parameters in the table are factory inspection value under standard testing conditions; 2. The flow is producing water flow when the product is used in MBR sewage treatment; |
|||
Application Field
Compared with many usual organic water remedy processes, MBR has the following major features:
1. High high-quality and steady effluent water quality
2. Low surplus sludge output
3. Small footprint, now not confined through placing occasions
4. It can cast off ammonia nitrogen and refractory natural matter
5. Convenient operation and management, convenient to recognize computerized control
6. Easy to radically change from typical crafts
Application Field
1) Municipal Wastewater Treatment Plant For Waste
2) Agricultural/fishery neighborhood wastewater remedy plant
3) Industrial wastewater therapy plant
