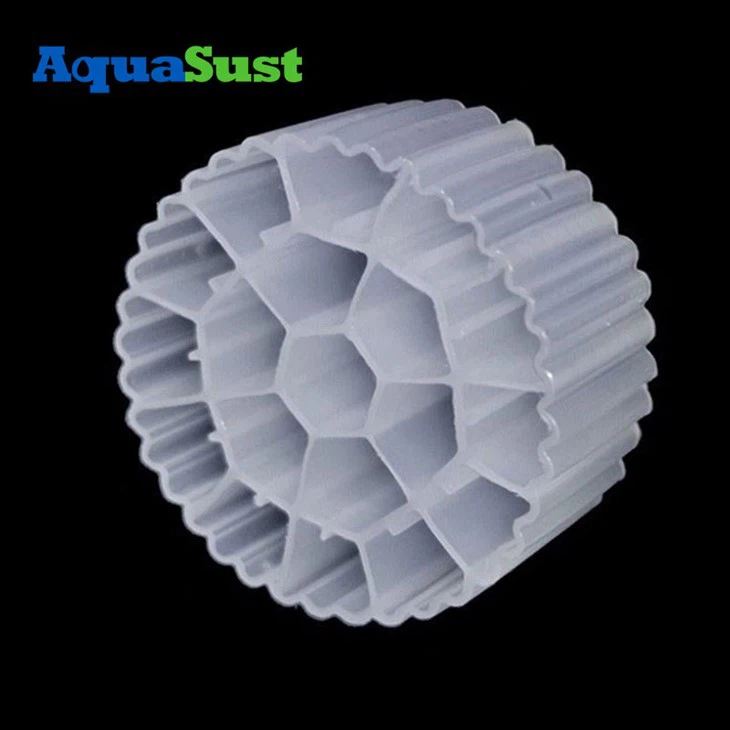

Item No. | MBBR 19 |
|
Diameter* Height |
25 mm* 12mm |
|
|
Surface Area |
> 700 m2/m3 |
|
|
Rooms |
19 rooms |
|
|
Number of units per m3 |
980000pcs |
Advantages of biofilm reactors is that they are easy to operate.
The science behind this process may be somewhat complex, but the process itself is straightforward.
Companies that produce wastewater need to determine several factors to calculate the most effective design for their MBBR system. These factors include the surface area loading rate (SALR) along with wastewater flow rate and nitrate, ammonia or BOD concentration. These factors can help determine the necessary carrier surface area and tank volume for a successful MBBR process. Calculations differ depending on whether the goal is single- or two-stage BOD removal, single-stage nitrification, two-stage BOD removal and nitrification, post-anoxic denitrification or pre-anoxic denitrification.
Once the correct design has been determined, operating the system is quite easy. Because the system is flexible and can respond to changes easily on its own, the operator rarely needs to make adjustments. Nature takes its course, and the system automatically produces effluent with reduced or eradicated waste pollutants.
Another of the MBBR advantages
That can make MBBR a preferable option for many industrial facilities is that they require little maintenance. Whereas other systems tend to require maintenance actions to keep the system operating, MBBR systems tend to function efficiently and effectively on their own with little intervention.
For example, when the system remains in continual operation, there is no need for return sludge flows or backwashing. Because the aeration grid keeps the media moving around in the tank, clogs are not an issue. Because the system self-moderates to provide the optimum amount of productive biofilm, operators don't need to take any action to maintain the correct food to microorganism ratio (F/M).
The maintenance that is typically required for an MBBR system consists of monitoring and operating pumps and blowers, as well as performing routine maintenance on screening, clarifier, influent equalization, integrated control and sludge handling systems.
