1.Low-speed push flow series products use cycloid reducer, equipped with small power, low speed, large impeller diameter, wide service area. The impeller is made of polyurethane material and aluminum alloy, with high strength and corrosion resistance, which can push the flow and create water flow in addition to the function of mixing.
2.The motor winding of the submersible mixer is insulated with class F and the protection level is IP68. When used in the aeration system of the sewage plant, the energy consumption of the system can be greatly reduced and the oxygen filling volume can be significantly increased, which can effectively prevent sedimentation.

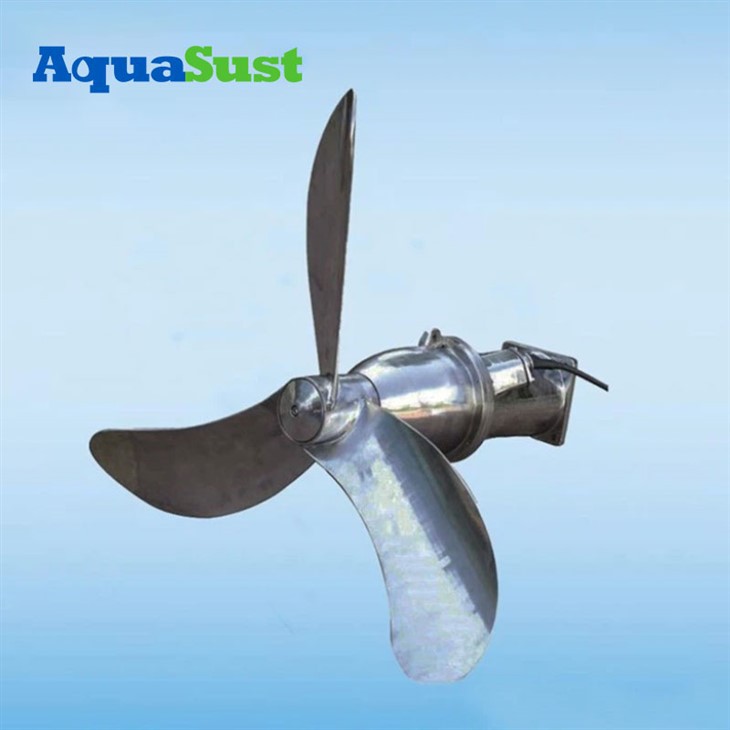

Aquasust Low Speed Mixing Special for MBBR Tank
Aquasust MBBR Mixer is specially developed for gentle mixing of the liquid plastic carrier elements (biomedia) in MBBR tanks.
The liquid biomedia used in the MBBR processes in modern sewage treatment plants is usually made of HDPE like Aquasust MBBR Media.
1. Lower Speed of Impeller speed is only 106 r/m, but Subersible Mixer most is 400 to 1000r/min, it is only 10 to 20% of them.Double-stage new reducer meets Bio carrier tank with special process requirements
2. Large diameter three-leaf stainless steel blades to meet Hydraulics and biocarrier process requirements
3. The propeller can achieve self-cleaning, the propeller is stainless steel material, Good design but also considering the function of automatic cleaning.
4. Equipped with the installation system developed by Aquasust, it can be installed on the equipment from multiple angles.
Low Speed Mixer Performance Parameters
Aquasust MBBR Mixer are designed in such a way that they have an exceptionally large, inner surface area on which the bacteria can grow without being knocked off or otherwise destroyed when they rotate and hit each other.
|
Model |
Power (KW) | Electrode | Rated current (A) | Speed (r/min) | Quantity (set) | Diameter (mm) | Threst (N) | Weight (Kg) |
| AquasustMIXER3/4 | 3 | 4 | 6.6 | 420 | 2 | 400 | 1400 | 75 |
| AquasustMIXER4/4 | 4 | 4 | 8.6 | 420 | 2 | 550 | 1800 | 85 |
| AquasustMIXER5.5/4 | 5.5 | 4 | 11.8 | 420 | 2 | 550 | 2100 | 90 |
| AquasustMIXER7.5/4 | 7.5 | 4 | 15.5 | 420 | 2 | 620 | 2600 | 100 |
| AquasustMIXER11/4 | 11 | 4 | 24 | 420 | 2 | 750 | 3100 | 120 |
| AquasustMIXER15/4 | 15 | 4 | 33 | 420 | 2 | 800 | 3500 | 150 |
Mixing range speed of 0.Im/s (clear water)
Aquasust Subersible Mixer
Subersible Mixer Performance Parameters
| Model | Motor power (kw) | Electrode | Rated current (A) | RPM of vane or propellel (r/min) | Diameter of vane or propeller (mm) | Weight (kg) |
| AquasustQJB0.37/6 | 0.37 | 6 | 4 | 980 | 220 | 25 |
| AquasustQJB0.85/8 | 0.85 | 8 | 3.2 | 740 | 260 | 55 |
| AquasustQJB1.5/6 | 1.5 | 6 | 4 | 980 | 260 | 55 |
| AquasustQJB2.2/8 | 2.2 | 8 | 5.9 | 740 | 320 | 88 |
| AquasustQJB 4/6 | 4 | 6 | 10.3 | 960 | 320 | 88 |
| AquasustQJB1.5/8 | 1.5 | 8 | 5.2 | 740 | 400 | 74 |
| AquasustQJB2.5/8 | 2.5 | 8 | 7 | 740 | 400 | 74 |
| AquasustQJB 3/8 | 3 | 8 | 8.6 | 740 | 400 | 74 |
| AquasustQJB 4/6 | 4 | 6 | 10.3 | 980 | 400 | 74 |

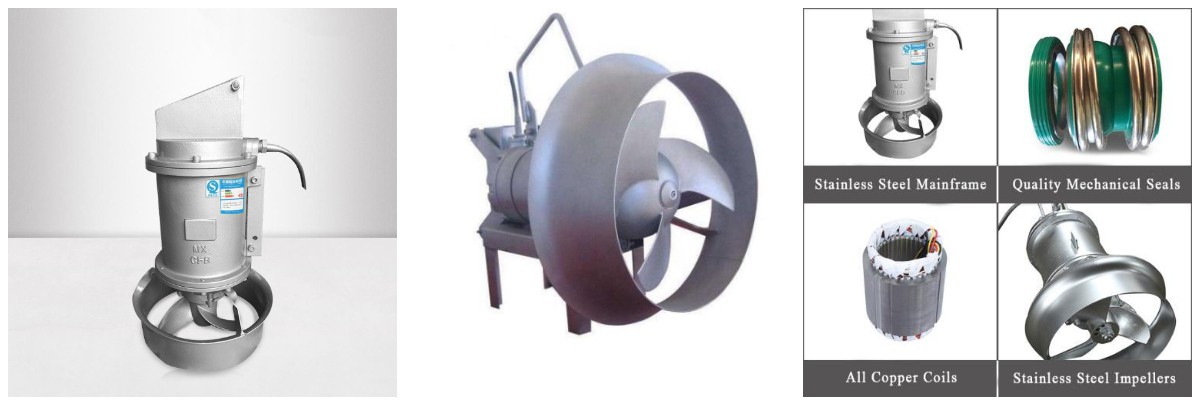

Aquasust Subersible Mixer Feature:
1. Aquasust submersible mixing compact structure, small volume, light weight, simple operation and maintenance, easy installation and maintenance, long service life.
2. The structure of the impeller has the optimum hydraulic design, work efficiency is high, after swept blade has self-cleaning function can prevent sundry winding, jam.
3. mixed with aeration system use can make a significant reduction in energy consumption, obviously improve the oxygen filling, effectively prevent the precipitation.
4. motor winding insulation class is F, protection grade IP68, chooses import disposable lubrication maintenance free high quality bearing, has the oil chamber leak detection and exclusive patent motor winding overheating protection and condensation prevention device, make the motor work more safety and reliable.
5. Two independent mechanical seal, mechanical seal friction pay for corrosion resistant material or carbide carbon, silicon, and fasteners are stainless steel material.
6. The unique design of cable seal ruled out the cable leakage hidden trouble.
7. standard parts adopt why separation technology, can effectively prevent the corrosion.

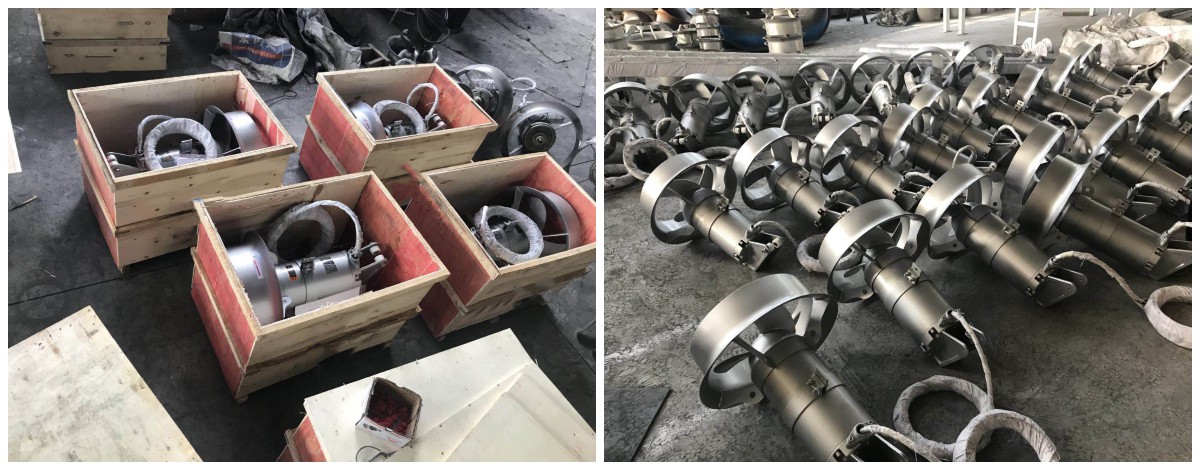

Applications and Packaging
Jutnai MBBR Mixer and Subersible Mixer use in the following conditions:
1.The highest medium temperature does not exceed 40℃.
2.The PH value is between 5 and 9.
3.The density of liquid shall not exceed 1.15 kg/m3.
4.Long-term diving operation, the diving depth is generally not more than 20m.
Application Examples:
1.MBBR reactors
2.Fish ensilage
3.Acidic liquids
4.Liquids with a high chloride
content, Such as at
5.Desalination plants
6.Anoxic and anaerobic tanks
7.SBR reactors
8.Sludge tanks
FAQ
1.Can we get samples? Yes, 1kg free samples can supply .
2.What's Your Delivery Time? Normally 15-20days afater order confirm.
3.What is MOQ? Our MOQ is 1PCS .
4.Are You Factory Or trading Company? We're a direct factory in Anqing Anhui China.
5.How About Container Quantity? 1*20GP can load 30CBM 1*40GP can load 70cbm
6.What's Your Packing? Packing is woven bag;0.1m3/1m3 per bag
