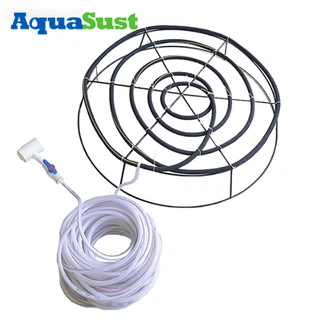

Rubber Aeration Tubing Hose
| PRODUCT BRAND: | Aquasust |
| ROCESSING TECHNOLOGY: | HEATING EXTRUSION OF RAW MATERIALS |
| PACKING METHOD: | ARRANGEMENT DENSITY OF MICROPORES WRAPPEDBY TRANSPARENT MEMBRANE: 1000-1600 PIECES/ M |
| BUBBLE DIAMETER: | 0.3-2MM (FRESH WATER) 0.5-3MM (SEAWATER) |
| AERATION RATE: | 00.002-0.006M3/MIN. M |
| AIR FLOW: | 0.1-0.4M3/H. M |
| SERVICE AREA: | 1-8M3/M |
| TO CONFIGURE: | MOTOR POWER 1KW, EQUIPPED WITH 100-150M MICROPOROUS AERATION TUBE |
| DYNAMIC EFFICIENCY: | THE CONSUMPTION PER MU IS ONLY 0.15KW |
Rubber Aeration Tubing Hose (aeration diffuser hose) are used to make the dissolved oxygen in the water reach higher amount and enhance the stocking density. The Aeration hose has been tested for oxygenation of clean water and sewage by the china municipal engineering North China Design Institute. It is especially suitable for the construction and expansion of urban sewage and large-scale factories and the renovation of old aeration tanks.
Oxygenation principle
The Roots blower is used to press the air into the air pipeline and send it to the nanotube, where it is dispersed into the water in the form of micro bubbles, which float from the bottom to the top, prompting the oxygen to fully dissolve into the water, and also causing the water to rotate and flow up and down, so that the oxygen-rich water in the upper layer of the pond is brought to the bottom, realizing the uniform oxygenation of the pond water.
Size Chart:
|
SIZE |
PACKING |
DENSITY |
WEIGHT |
VOLUME |
|
10*16MM |
200M/ROLL |
60-80 MESH/40MESH |
21KG |
0.075M3 |
|
10*20MM |
100M/ROLL |
60-80 MESH/40MESH |
21KG |
0.07M3 |
|
10*25MM |
100M/ROLL |
60-80 MESH/40MESH |
34KG |
0.09M3 |
|
12*25MM |
100M/ROLL |
60-80 MESH/40MESH |
30KG |
0.09M3 |
|
16*25MM |
100M/ROLL |
60-80 MESH/40MESH |
24KG |
0.09M3 |
|
20*28MM |
100M/ROLL |
60-80 MESH/40MESH |
25KG |
0.1M3 |
Product Material:
 |
Rubber: a high elastic polymer material with reversible deformation, which can be restored to its original state after removing the external force. |
|
PVC: an initiator of vinyl chloride monomer (VCM) in peroxide, azo compound, etc. It's the world's largest production of general plastic, is widely used. |
 |
Rubber Aeration Tubing Hose Advantages
|
|
In order to reduce the death of breeding objects, increase production and improve efficiency, people often use biological, chemical and physical methods to increase oxygen to the water body. In recent years, the application of high-quality synthetic rubber and ingredients made of open and closed microporous aeration oxygenator tube apparatus is a better way to increase oxygen. This opening and closing microporous tube apparatus and several other common oxygenators, the main characteristics are able to open and close, small holes, small bubbles; the main advantages are the following three. (a), compared with the surface oxygenation of a variety of oxygenators, its main advantages are: microporous tube apparatus underwater aeration and oxygenation can make the lower layer of the anoxic water body more oxygen supplement, can make the air filled into the water body evenly spread to all water layers, can make the bottom layer in the anoxic conditions produced by the toxic gases to accelerate the diffusion of air, can reduce the interference of noise on the normal activities of fish. (B), compared with air stones and other small, medium and large aerators or aeration tube, microporous tube apparatus to produce much smaller bubbles. The smaller the bubble, the larger the gas-liquid contact surface, the longer it stays in the water, the better the effect of oxygenation. (C), and can only open can not close the ceramic, titanium plate and other microporous aeration tube apparatus and perforated tube compared, its main advantage is good anti-blocking, water back seepage into the tube apparatus less, gas running resistance is small, can improve the oxygen utilization rate 1-3 times, and can save energy, save capital. The effect of aeration and oxygenation of the open and closed microporous tube installed as required is very obvious. |
Application:
Sinking Aeration Hose used to make dissolved oxygen in the water reach higher amount and enhance the stocking density. Apply to aquaculture, sewage treatment.
◆Aquaculture
◆Landscape engineering
◆River training
◆Water reuse
◆Sewage treatment
◆Fish Pond
◆Shrimp Farming
|
|
 |
Using Method
According to the law of dissolved oxygen changes in the water body, determine the time and time period to turn on the machine to increase oxygen. Generally, from April to May, the machine is turned on in the middle of the night on cloudy and rainy days.
In June ~ October, turn on the machine for 2-3 hours in the afternoon, 2-3 hours before and after sunrise, continuous rainy or low-pressure weather, turn on the machine at 21:00-22:00 at night and continue until noon of the second day; late in the breeding season, turn on the machine diligently to promote the growth of aquaculture objects. Dissolved oxygen detection is carried out when available, and the machine is turned on at the right time to ensure that the dissolved oxygen in the water body is 6-8 mg / l is better.
|
|
 |
Packaging & Shipment
Useing Poly film and Ties for Packaging.
We have our own fixed forwarder, can provide very competitive freight prices and support a variety of trade terms,
including but not limited to FOB,CFR(C&F),CIF,EXW,DDP,DDU.
 |
 |
