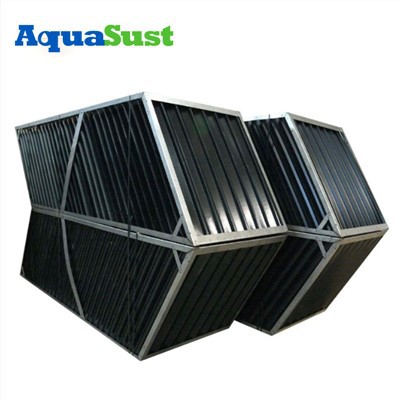

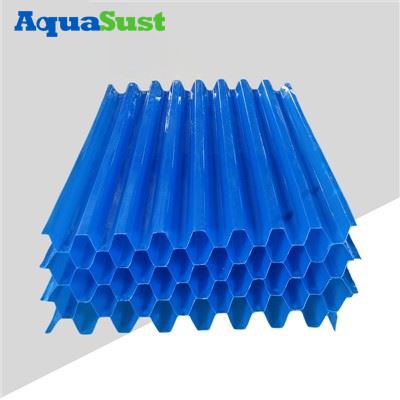

Tube Settler Lamella Settle Square Water For Domestic Water Treatment
Pipeline settlers are widely used in the field of water treatment, covering sewage treatment, industrial wastewater treatment, tap water treatment and other fields. Its exceptional performance provides a reliable solution for these applications, helping to meet water quality standards and environmental regulations.
tube settlers design and structure
A pipe settler is a device used to remove suspended particulate matter from a liquid, typically used in industry and handling liquid streams with high particulate loads. Its design and structure can vary depending on the application, but generally includes the following basic components:
Inlet pipe: The inlet pipe directs the liquid containing suspended particulate matter to the settler. Usually, the liquid enters the precipitator from the inlet at a certain speed.
Sedimentation Chamber: The sedimentation chamber is the main part of the settler where the liquid stays for a period of time to allow the particles to settle. The settling chamber is usually a large vessel or tank with sufficient volume to allow particulate matter to settle in the liquid.
Outlet pipe: The purged liquid flows out from the outlet pipe at the bottom or one side of the settling chamber. This pipe returns the cleaned liquid to the treatment system or to the next stage of the production process.
Suspended solids discharge port: Usually, there is a discharge port at the bottom of the sedimentation chamber to discharge the settled particles out of the equipment. These vents are often connected to a waste treatment system to allow safe handling or disposal of sediment.
Separators or fillers: In order to increase the sedimentation efficiency of particles, the sedimentation chamber may include dividers, fillers, or other devices to increase the contact surface area between the liquid and the particles, making it easier for the particles to settle.
Level Control System: In order to maintain proper level and flow rate, a level control system is usually required. This can include level sensors, flow control valves and automatic control systems to ensure that the liquid within the settling chamber is maintained at the appropriate level.
Cleaning the system: Sometimes, the settler needs to be cleaned regularly to remove the sediment and restore its performance. The cleaning system can include flushing nozzles, cleaning media, drains and other equipment.
