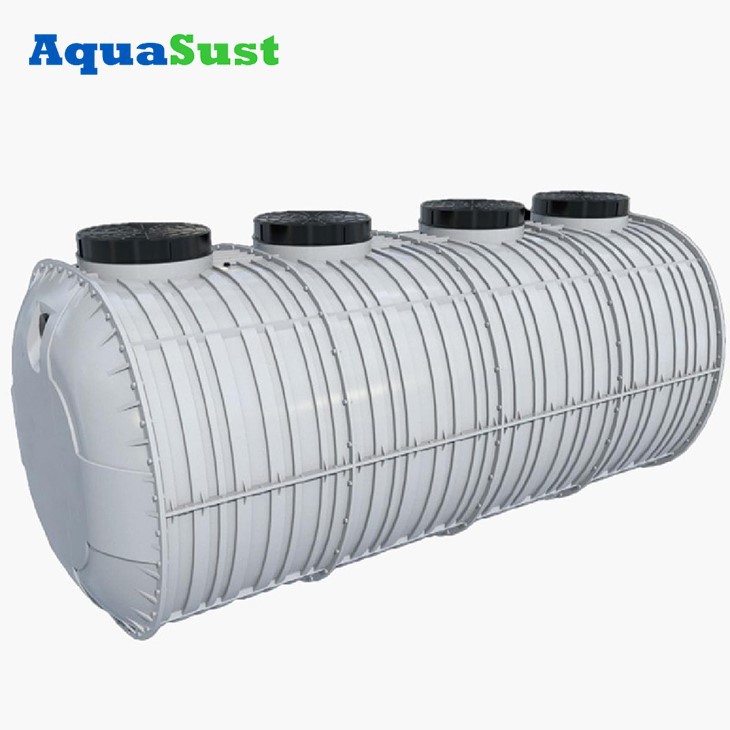

Aquasust sewage treatment system is based on GCE intelligent purification tank+GCE biological strains.GCE intelligent purification tank is a high-efficiency sewage purification equipment with molded fiberglass SMC as the carrier and A/A/O as the core process.It has applied for dozens of patents.GCE biological strains are high-efficiency functional strains that are screened and improved by the Biotechnology Research Center of Joint Colleges and Universities based on the characteristics of sewage and purification tank devices, effectively ensuring the treatment effect of the purification tank.The processing capacity is 0.5-100t/d.
GCE Smart Johkasou Process Flow
After being collected through the pipe network,sewage enters the purification tank,where most of the pollutants in the sewage are removed through the anaerobic,anoxic and aerobic action of microorganisms before being discharged.Every 3-6 months,a part of the sludge and sediment at the bottom of the sedimentation tank of the purification tank is sucked out by a fecal suction truck.
◎ Standardized and mass-produced,product quality is stable and guaranteed.
◎ The raw materials are made of high-end brand resin,with high structural strength and corrosion resistance,and can be used stably underground for 30 years
◎ The unique patented water distribution and distribution system is IL adopted to ensure that there is no dead angle and short flow in the system,and the effective volume is large.
◎ Patented surface corrugated reinforcement design technology is adopted, with high structural strength,and can be used in thick frozen soil environment
◎ The patented filler compound combination technology provides a reliable growth environment for microbial growth.
◎ Equipped with GCE bio-enhanced denitrification and phosphorus removal bacteria,the system starts quickly,has strong impact load resistance and less sludge.
◎ GCE Smart Johkasou is easy to install,operate and maintain,and the system can be operated and controlled remotely.
The annual production capacity of purification tanks can reach 3,000sets, with large production capacity and fast delivery cycle
The porous gel filler has abiofilm surface area 3-4times that of ordinary plastic fluidized bed fillers,and the biofilm amount is1.9 times that of ordinary plastic fluidized bed fillers
Equipped with proprietary GCE bio-enhanced nitrogen and phosphorus removal bacteria,the system starts quickly,has strong resistan ce to shock loads,and is ea sy to operate and maintain.
It uses more durable and stronger SMC material and compression molding process,and can be used stably underground for 30 years.
The patented surface corru gated reinforcement design technology has high structural strength and can be used in the thick frozen soil environment in the north.The designed burial depth can reach 2 meters.
The unique patented water distribution system is used to ensure that there are no dead comers or short-flows in the septic tank system,and the effective volume is large .
Patented Strain
GCE biological strains are highly efficient functional strains that are screened and improved by the Biotechnology Research
Center of Joint Universities based on the characteristics of sewage and the features of septic tank devices,effectively ensuring the treatment effect of the septic tank.
Advantages of GCE biological strains
Strong ability to remove total nitrogen and total phosphorus, good sludge settling performance, and good effluent effect.
High treatment efficiency, the treatment capacity is 2-3 times the treatment capacity of a single tank.
Low sludge discharge, the unit sewage sludge discharge is only about 30% of the "activated sludge method"
Biochemical One-Step Method"Patented Technology
Innovative Filler
Innovative filler from Japan
GCE Smart Johkasou adopts porous gel filler from Japan,which has good hydrophilicity,and the unique wall structure has water absorption effect,which greatly increases the specific surface area of the biological carrier.The load of microorgan-isms is large,
the volume load is high,and the surviving microorganisms are not easy to lose under the shearing action of water and air,so that the ammonia nitrogen and total nitrogen in the sewage can be reduced at the same time,and it also has advantages such as strong air bubbles cutting ability,large space volume utilization rate and no dead zone ets.The innovative filler are ideal products for microbial carriers in the current biological treatment technology.
Four advantages,long-term purification
Good Hydrophilicity
1.Good hydrophilicity
2.Easy to absorb water
3.Settle quickly
4.Easy to fluidize adapt to many structures
High Capacity
1.Special wall structure
2.Large specific surface area
3.Rich bio-film
4.Simultaneous nitrification and denitrification
Less Sludge Production
1.Long sludge residence time,rich in advanced microorganisms
2.Reduction of surplus sludge and reduced use of chemical
Long Lifetime
1.Gel filling,good wear resistance
2.Anti-aging,with a service life of up to 15 years
Smart Cloud Platform
Aquasust relies on the Internet of Things technology to achieve information- based,digital,and intelligent management of projects from multiple entry points such as efficient operation and maintenance,centralized control,remote diagnosis,online control,equipment management, intelligent after- sales,and data statistics,improving the automation capabilities of equipment, promoting the optimization of sewage treatment processes, improving the quality of operation and maintenance services and work efficiency,and reducing labor costs.
Platform Structure
①Equipment Map
The location of the site is clear at a glance, allowing quick positioning and assisting in 0&M.
②Real-time Data
The data is updated in real time,and the process flow chart simultaneously displays the start-stop status and parameters of the device.
③Historical Data
Massive data is stored in the cloud,and historical records can be traced at any time.
④Statistical Analysis
Visual charts are presented flexibly and pushed regularly in multiple ways.
⑤Early Warning Alarm
According to the alarm rules,faults are automatically found,and the alarm message is pushed at the first time,which is timely and efficient.
⑥Monitoring Management
High-definition camera video live broad-cast,photo shooting,live images can be captured at any time.Customize the automatic cruise mission.
Model Specifications Of GCE Smart Johkasou
|
Type |
Capacity(m³/d) |
Dimension(mm) |
Manhole(mm) |
Power(w) |
Main Material |
|
GCE-0.5 |
0.5 |
1950*1170*1080 |
φ400*2 |
38 |
SMC |
|
GCE-1 |
1 |
2400*1300*1400 |
φ400*2 |
45 |
SMC |
|
GCE-2 |
2 |
2130*1150*1650 |
φ630*2 |
55 |
SMC |
|
GCE-5 |
5 |
2420*2010*2000 |
φ630*2 |
110 |
SMC |
|
GCE-8 |
8 |
3420*2010*2000 |
φ630*3 |
110 |
SMC |
|
GCE-10 |
10 |
4420*2010*2000 |
φ630*4 |
170 |
SMC |
|
GCE-15 |
15 |
5420*2010*2000 |
φ630*5 |
220 |
SMC |
|
GCE-20 |
20 |
7420*2010*2000 |
φ630*6 |
350 |
SMC |
|
GCE-25 |
25 |
8420*2010*2000 |
φ630*6 |
470 |
SMC |
|
GCE-30 |
30 |
10420*2010*2000 |
φ630*6 |
470 |
SMC |
|
GCE-40 |
40 |
φ2500*8500 |
φ630*6 |
750 |
GRP |
|
GCE-50 |
50 |
φ2500*10500 |
φ630*6 |
1500 |
GRP |
|
GCE-60 |
60 |
42500*12500 |
φ630*6 |
1500 |
GRP |
|
GCE-70 |
70 |
43000*10000 |
φ630*6 |
1500 |
GRP |
|
GCE-80 |
80 |
43000×11500 |
φ630*6 |
2200 |
GRP |
|
GCE-90 |
90 |
43000×13000 |
φ630*6 |
2200 |
GRP |
|
GCE-100 |
100 |
43000×13500 |
φ630*6 |
2200 |
GRP |
Remarks:Aquasust reserves the right to optimize and modify the parameters in the above table.
Case Photos And Application Field
Multi-field application
