●Sludge pump, dosing pump selection reference:
Processing capacity Sludge concentration
150[kg-DS/h] 10000[mg/L]
150[kg-DS/h]X1000[g/kg]+( 1000[mg/L+1000[mg/g])=15m3/h
Treatment volume Unit conversion Sludge concentration Unit conversion Sludge flow rate
●150[kg-DS/h] x 0.3% x 1000 x 1000[g/kg] = 450L/h
Treatment volume Agent addition rate Dilution rate Unit conversion Agent flow rate
●Please slightly larger than the theoretical value when choosing matching equipment, specifications update without advance notice, set Timing please ask for drawings.
|

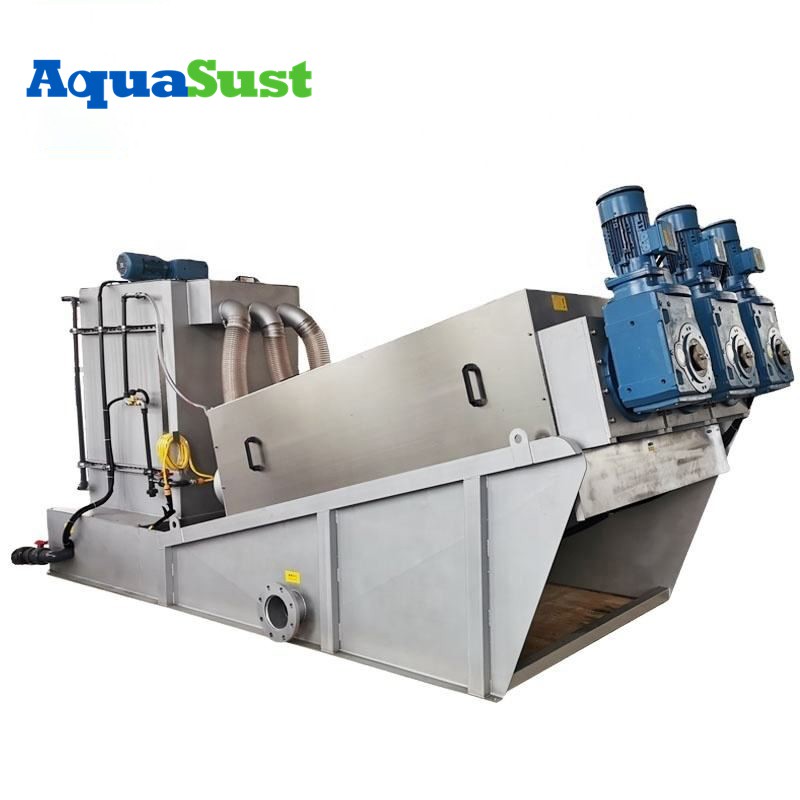

NH-303 Part Name |
|||
|
No. |
Name |
Material |
Remarks |
|
1 |
Dewatering body |
SUS304 |
|
|
2 |
Outlet Mud opening height from the ground |
SUS304 |
620mm |
|
3 |
Dewatering body bottom plate |
SUS304 |
Aperture: 4-φ20 |
|
4 |
Dosing tank |
SUS304 |
L300"W350*H760(mm) |
|
5 |
Flocculation mixing tank |
SUS304 |
L840*W840*H960(mm) |
|
6 |
Mixing tank mixer |
SUS304 |
Screw slurry type |
|
7 |
Liquid level adjustment tube |
SUS304 |
|
|
8 |
Water supply solenoid valve |
SUS304 |
DN20 |
|
9 |
Liquid level switch |
SUS304 |
|
|
10 |
Electric control cabinet |
SUS304 |
Optional |
|
Interface Connection |
|||
|
No. |
Name |
Caliber |
Connection Part |
|
NH-1 |
Sludge conveying port |
DN40 |
PVC interface |
|
NH-2 |
Filtrate discharge port |
DN80 |
Flange(SUS) |
|
NH-3 |
Water supply port |
DN20 |
PVC interface |
|
NH-4 |
Chemical liquid conveying port |
DN20 |
PVC interface |
|
NH-5 |
Reflux port |
DN80 |
PVC interface |
|
NH-6 |
Mixing tank discharge port |
DN50 |
Ball valve(PVC) |
|
Selection parameters |
|||
|
Processing capacity. |
90~150(DS-kg/h) |
||
|
Electricity consumption |
3kw/h |
||
|
Flushing water consumption |
120L /h |
||
|
Polymer flocculant addition rate |
For DS/T~0.3% |
||
|
Maintenance management frequency |
5min/day |
||
|
Water supply pressure |
0.1~0.2MPa |
||
|
Mud cake discharge distance from the ground |
680mm |
||
|
Mechanical size |
L3605*W1470*H1780(mm) |
||
|
Net weight |
1358kg |
||
|
Operating weight |
2750kg |
||
