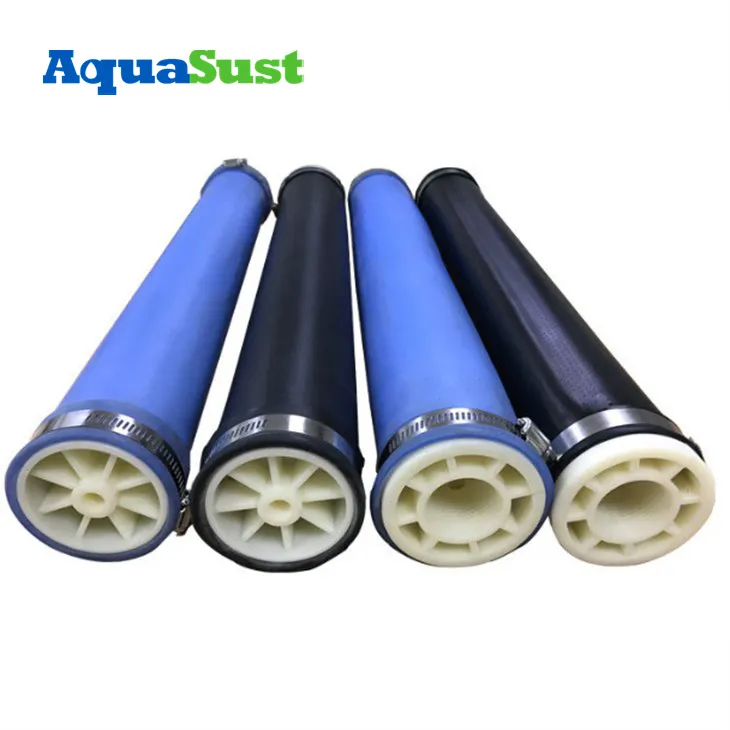

Fine Bubble Tube Diffuser TD63
Brand Name: NIHAO
Diameter: 63mm
Length: 500mm,750mm,1000mm
Material: EPDM, Silicon or customized
Connector:3/4NPT
Bubble Size(mm):1-2
Service Area(m2):0.75-2.5
Product Introduction:
The Tube Fine Bubble Diffusers increase the oxygen transfer efficiency while decreasing the power consumption to provide the same quality of effluent water. The diffusers can be used to create zones with high oxygen concentrations (anoxic or aerobic), minimal oxygen concentration (anoxic), and no oxygen (anaerobic), offering plant operator a great deal of operational flexibility.
Features:
1. Reduces installation time.
2. Any diffuser length is available to suit the needs of each application.
3. Attachment system eliminates structural concerns of many other tube diffuser designs.
Suitable for off/on applications.
4. Diffusers are factory assembled for easy installation.
5. Available membrane material: EPDM, Silicon or customized
Technical Specification
|
Technical Specification |
|||
|
item number |
TD65 |
TD95 |
TD115 |
|
material |
EPDM/Silicon membrane ABS tube |
EPDM/Silicon membrane ABS tube |
EPDM/Silicon membrane ABS tube |
|
Length |
500/750/1000mm |
500/750/1000mm |
500/750/1000mm |
|
Connector |
3/4NPT |
3/4NPT |
3/4NPT |
|
Flow range(m3/h) |
2--14 |
5--20 |
6--28 |
|
Bubble Size(mm) |
1--2 |
1--2 |
1--2 |
|
Service Area(m2) |
0.75-2.5 |
1.0-3.0 |
1.5-2.5 |
|
Service Life |
>5year |
>5year |
>5year |
