What Is Dosing System

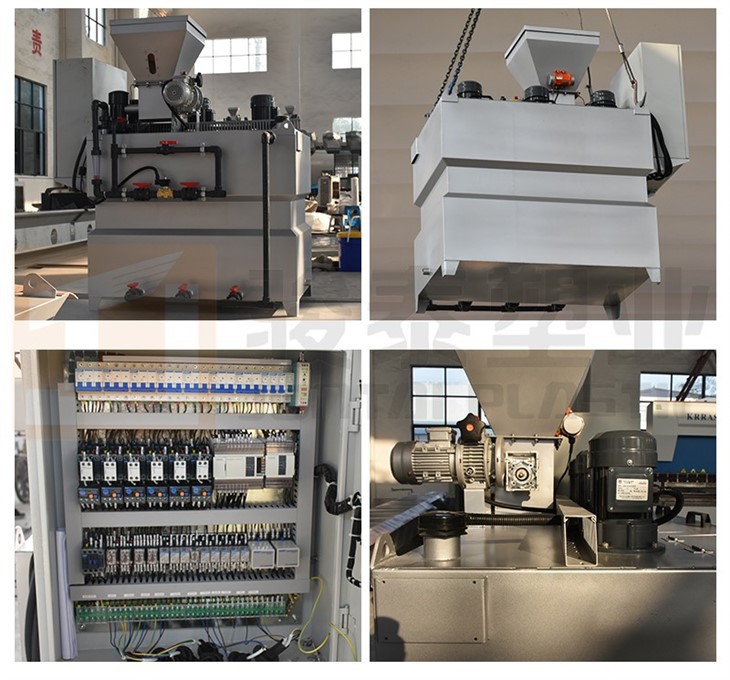

Automatic Polymer Dosing System (or "Powder Dispensing Dissolver") is a auxiliaryauto-equipment, which can prepare and throw polymer solution continually. It can complete the chemical combination and mixing of the polymer continually and efficiently in order to obtain homogeneous and activated solutions. Dosing device is mainly composed of solution tank,stirring tank (with sirrer),metering pump ,level gauge,electronic control,piprlinr ,valve ,safety valve,staircase etc (which can confihuration according to client's actual requirement). Widely used in municipal wastewater treatment, sludge dewatering treatment and other technical treatment.

Aquasust Dosing System Advantages

product-800-800

1.Allows for monitoring of the medication situation at any time and prevents moisture ingress

2.Automatic alarm

3.Reflux to the tank for pre-dilution + electromagnetic valve double protection

4.Liquid level indicator

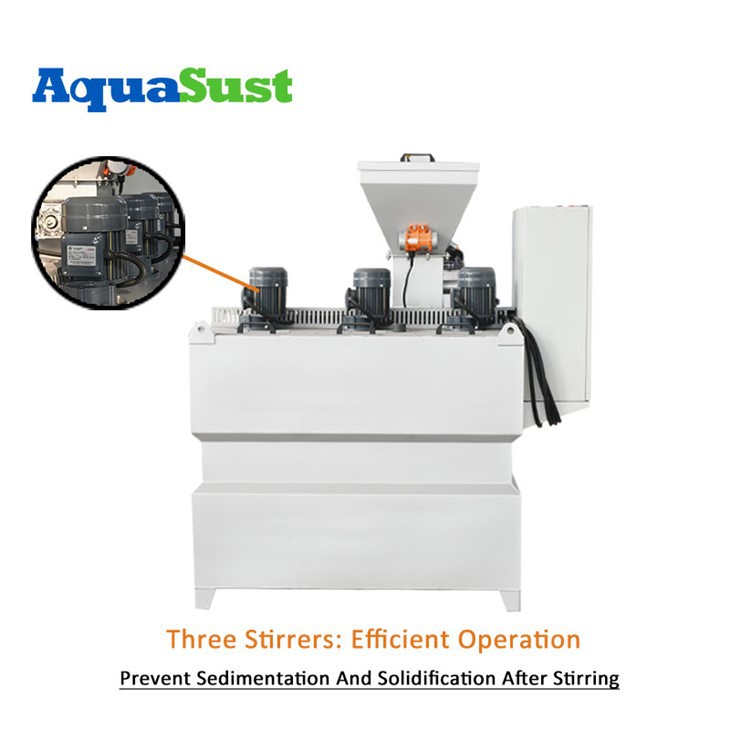

5.The first two complete the mixing process, and the third one stores the mixture to prevent sedimentation and solidification

6.The electric motor has an oil pressure display and uses a gear reducer

7.The vulnerable parts are only the electromagnetic valve (which can be used for 2-3 years)

8.The heater prevents medication from caking

9.The vibration motor ensures smooth and even material feeding

10.All pipes are chemical-grade and the system is equipped with two dosing pumps

Aquasust Parameter Of Dosing System

product-1085-259

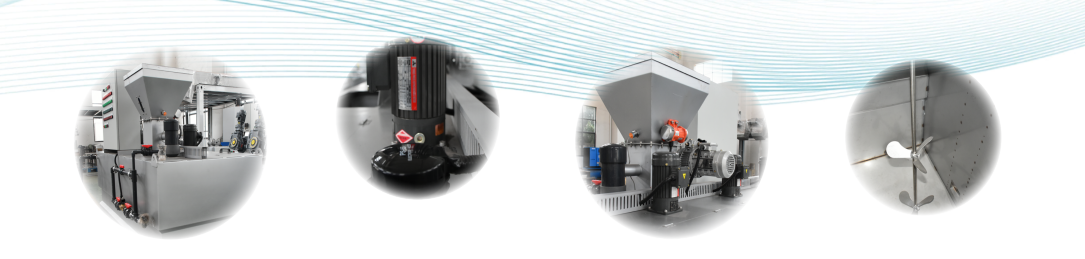

An optimized design can ensure that the polymer undergoes the maturation process using the smallest possible footprint.

An automatic polymer preparation unit is used for preparing powder polymer to achieve homogeneity in flocculant concentration

Model	Capacity( L / h )	Powder Hopper Capacity	Material	Power( KW )	Dimensions ( MM )			Weight( Kg )
Model	Capacity( L / h )	Powder Hopper Capacity	Material	Power( KW )	L	W	H	Weight( Kg )
NH - 500L	500	65	SUS304	0.99	1400	1520	1870	280
NH - 1000L	1000	65	SUS304	0.99	2000	1300	1660	410
NH - 2000L	2000	65	SUS304	1.36	2440	1520	1965	550
NH - 4000L	4000	65	SUS304	1.36	3000	1800	2115	680
NH - 5000L	5000	65	SUS304	3.55	4000	1550	1830	960
NH - 6000L	6000	65	SUS304	3.55	4000	1800	2080	1050
NH - 8000L	8000	65	SUS304	4.65	4500	1800	2100	1280
NH - 10000L	10000	65	SUS304	4.9	5000	1800	2100	1560

Aquasust Pma Dvantages Characteristic

product-512-384

Surface Adsorption

The polar groups on PAM molecules allow for various types of adsorption onto particles.

Strengthening Effect

Through various mechanical, physical, and chemical interactions between the PAM molecule chains and the dispersed phase, they are linked together to form a mesh structure

Adsorption Bridging

PAM molecules are attached to the surfaces of different particles, forming bridges between them to create polymer aggregates that settle down.

Coagulation

The effectiveness of PAM in coagulation depends on the surface properties of the particles being coagulated, such as zeta potential, viscosity, turbidity, and pH of the suspension. By adding PAM with an opposite surface charge, the zetapotential is reduced, causing coagulation.

Aquasust Dosing System Product Application

1.Wasterwater treatment

2.Food And Beverage

3.Chemical And Petrochemical

4.Medical Industry

5.Environmental Engineering

product-944-623
